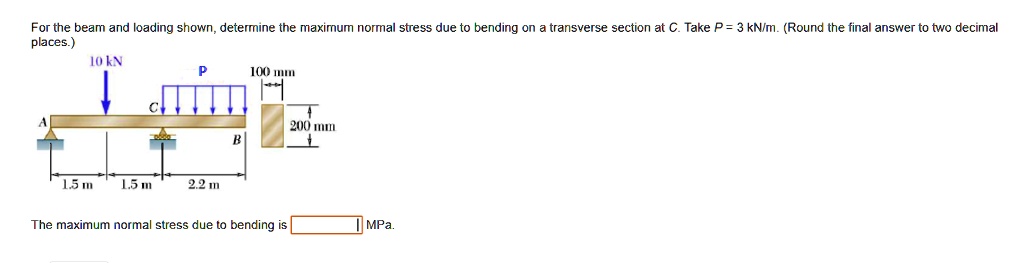

For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C. Take P = 3 kN/m. (Round the final answer to two decimal places.) A 10 kN P 100 mm C 200 mm B 1.5 m 1.5 m 2.2 m The maximum normal stress due to bending is MPa.
Added by Angela A.
Close
Step 1
The moment is the force times the distance from the point of interest. The force is the weight of the beam and the load, and the distance is the distance from the point of interest to the center of gravity of the beam and the load. The weight of the beam is the Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 57 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

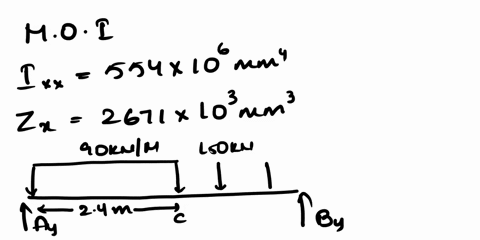

Q3/ For the beam and loading shown, determine the maximum normal stress due to bending: 50 mm 300 Nm 2 m 0.8 m 0.5 m
For the beam shown, calculate (a) the maximum bending stress; and (b) the bending stress at a point 0.5 in. from the top of the beam on section D. Answer: a) 10.12 ksi b) 5.06 ksi
