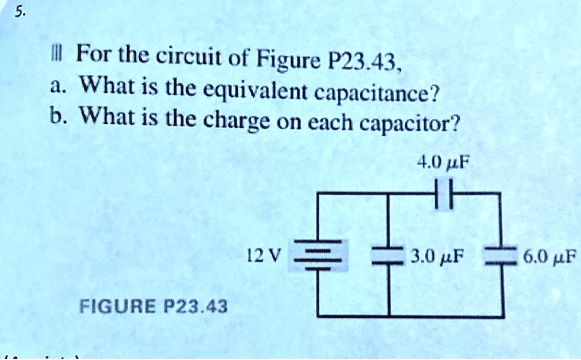

For the circuit of Figure P23.43, a. What is the equivalent capacitance? b. What is the charge on each capacitor? 4.0 ?F 12 V 3.0 ?F 6.0 ?F FIGURE P23.43
Added by Thomas H.
Close
Step 1
43), I'll assume a common setup where we have a series and parallel combination of capacitors. Let's assume the 40 pF and 3.0 pF capacitors are in series, and this combination is in parallel with the 6.0 pF capacitor. The voltage across the setup is 2V. Let's Show more…
Show all steps
Your feedback will help us improve your experience
Mrinal R and 88 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For the circuit below: a. What is the equivalent capacitance? b. What is the charge on each capacitor?
Supreeta N.

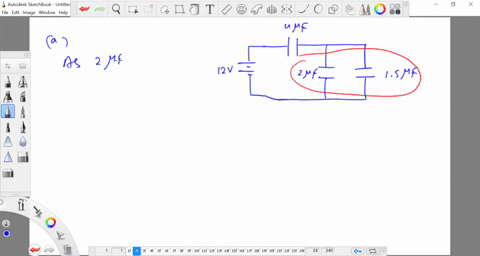

For the circuit of Figure $\mathrm{P} 23.42$, a. What is the equivalent capacitance? b. How much charge flows through the battery as the capacitors are being charged?
Find (a) the equivalent capacitance of the capacitors in Figure $P 16.39,(b)$ the charge on each capacitor, and $(c)$ the potential difference across each capacitor.
