Question

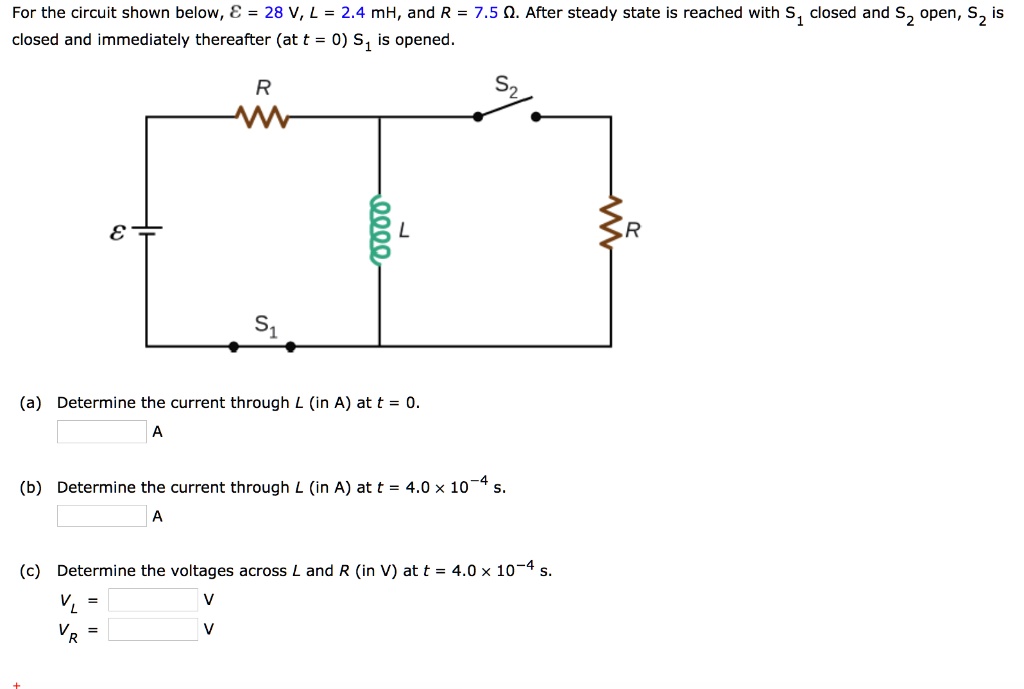

For the circuit shown below, ? = 28 V, L = 2.4 mH, and R = 7.5 ?. After steady state is reached with S? closed and S? open, S? is closed and immediately thereafter (at t = 0) S? is opened. (a) Determine the current through L (in A) at t = 0. A (b) Determine the current through L (in A) at t = 4.0 × 10?? s. A (c) Determine the voltages across L and R (in V) at t = 4.0 × 10?? s. V? = V? =

          For the circuit shown below, ? = 28 V, L = 2.4 mH, and R = 7.5 ?. After steady state is reached with S? closed and S? open, S? is closed and immediately thereafter (at t = 0) S? is opened.

(a) Determine the current through L (in A) at t = 0.
A

(b) Determine the current through L (in A) at t = 4.0 × 10?? s.
A

(c) Determine the voltages across L and R (in V) at t = 4.0 × 10?? s.
V? =
V? =

Show more…

For the circuit shown below, ? = 28 V, L = 2.4 mH, and R = 7.5 ?. After steady state is reached with S? closed and S? open, S? is closed and immediately thereafter (at t = 0) S? is opened.

(a) Determine the current through L (in A) at t = 0.
A

(b) Determine the current through L (in A) at t = 4.0 × 10?? s.
A

(c) Determine the voltages across L and R (in V) at t = 4.0 × 10?? s.
V? =
V? =

Added by Mireia C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

04/26/2023

Step 1

When S1 is closed and S2 is open, the circuit reaches a steady state. In this state, the inductor L behaves like a short circuit (since it has no resistance), and the current flows through the resistor R. We can find the current through R using Ohm's Law: I = Show more…

Show all steps

lock

Thanks for your feedback!

For the circuit shown below, E = 28 V, L = 2.4 mH, and R = 7.5 Ω. After steady state is reached with S1 closed and S2 open, S2 is closed and immediately thereafter (at t = 0) S1 is opened. (a) Determine the current through L (in A) at t = 0. (b) Determine the current through L (in A) at t = 4.0 x 10^-4 s. (c) Determine the voltages across L and R (in V) at t = 4.0 x 10^-4 s.
