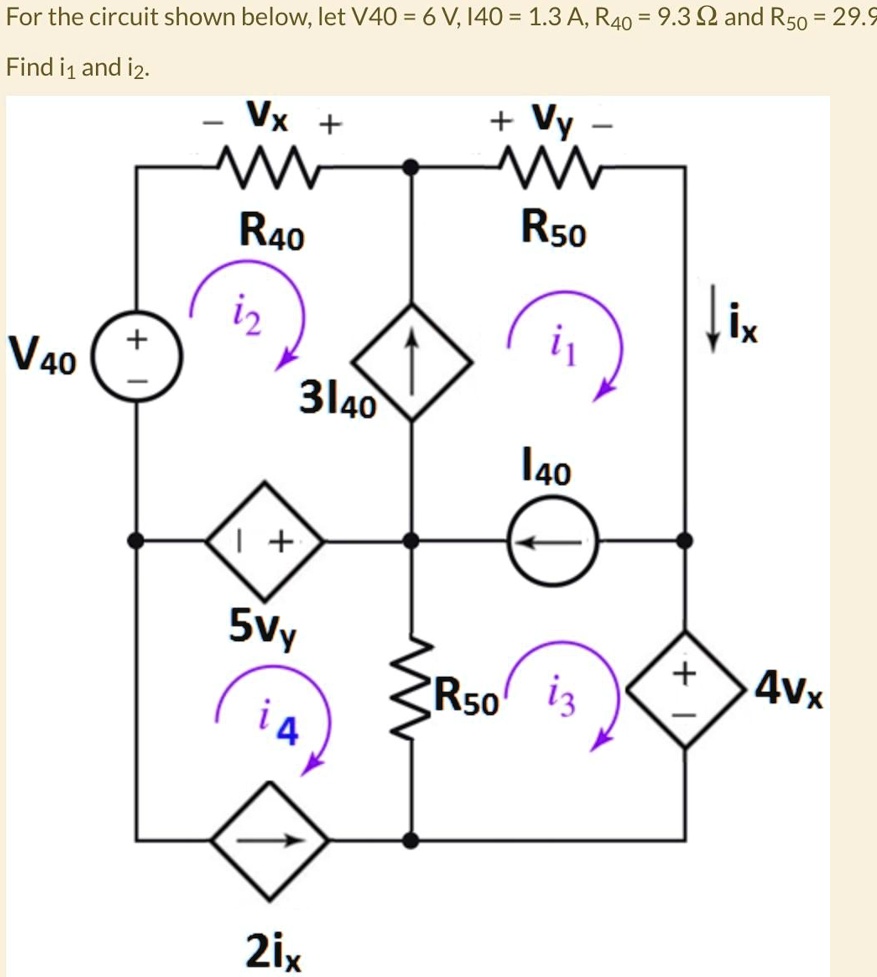

For the circuit shown below, let V40 = 6 V, I40 = 1.3 A, R40 = 9.3 ? and R50 = 29.9 ?. Find i1 and i2. - Vx + + Vy - R40 R50 i2 i1 ix V40 3I40 I40 - + 5vy i4 R50 i3 +- 4vx 2ix
Added by Jennifer C.
Close
Step 1
3\Omega + 29\Omega = 38.3\Omega$ Show more…
