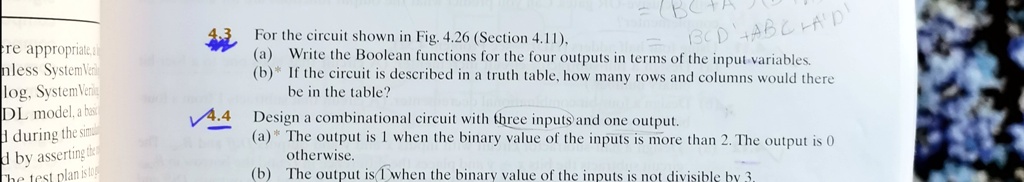

4.3 For the circuit shown in Fig. 4.26 (Section 4.11), (a) Write the Boolean functions for the four outputs in terms of the input variables. (b)* If the circuit is described in a truth table, how many rows and columns would there be in the table? 4.4 Design a combinational circuit with three inputs and one output. (a)* The output is 1 when the binary value of the inputs is more than 2. The output is 0 otherwise. (b) The output is 1 when the binary value of the inputs is not divisible by 3.
Added by Amanda C.
Close
Step 1
### Designing the Combinational Circuit #### Part a) Output is 1 when the binary value of the inputs is more than 2 Show more…
Show all steps
