For the circuit shown in the figure below, (V = 11.9 V) 0.30 µF V 1.0 µF 0.25 µF (a) Find the equivalent capacitance between the terminals µF (b) Find the charge stored on the positively charged plate of each capacitor 0.3 µF capacitor µC 1.00 µF capacitor µC 0.250 µF capacitor µC (c) Find the voltage across each capacitor 0.3 µF capacitor V 1.00 µF capacitor V 0.250 µF capacitor V (d) Find the total stored energy. µJ

          For the circuit shown in the figure below, (V = 11.9 V)
0.30 µF
V 1.0 µF 0.25 µF
(a) Find the equivalent capacitance between the terminals
µF
(b) Find the charge stored on the positively charged plate of each capacitor
0.3 µF capacitor µC
1.00 µF capacitor µC
0.250 µF capacitor µC
(c) Find the voltage across each capacitor
0.3 µF capacitor V
1.00 µF capacitor V
0.250 µF capacitor V
(d) Find the total stored energy.
µJ

For the circuit shown in the figure below, (V = 11.9 V)
0.30 µF
V 1.0 µF 0.25 µF
(a) Find the equivalent capacitance between the terminals
µF
(b) Find the charge stored on the positively charged plate of each capacitor
0.3 µF capacitor µC
1.00 µF capacitor µC
0.250 µF capacitor µC
(c) Find the voltage across each capacitor
0.3 µF capacitor V
1.00 µF capacitor V
0.250 µF capacitor V
(d) Find the total stored energy.
µJ

Added by Diego D.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

10/20/2022

Step 1

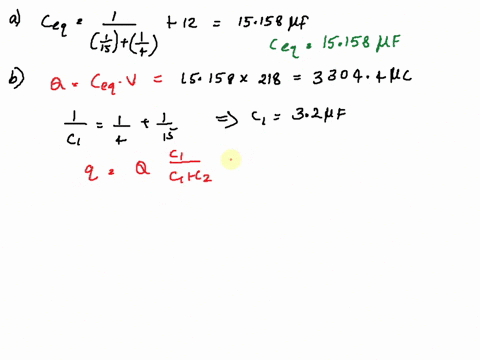

30 μF capacitor (C1) = 0.30 μF - Capacitance of the 1.00 μF capacitor (C2) = 1.00 μF - Capacitance of the 0.25 μF capacitor (C3) = 0.25 μF Since C1 and C2 are in series, their equivalent capacitance (Cs) can be calculated using the formula: \[ \frac{1}{Cs} = Show more…
