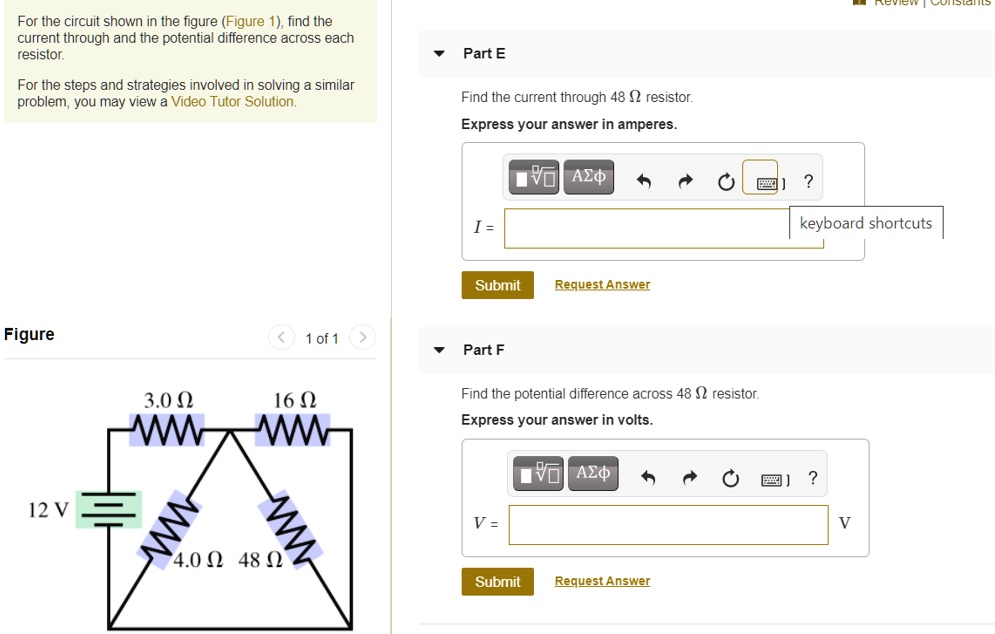

For the circuit shown in the figure (Figure 1), find the current through and the potential difference across each resistor. For the steps and strategies involved in solving a similar problem, you may view a Video Tutor Solution. Part E Find the current through 48 ? resistor. Express your answer in amperes. I = Part F Find the potential difference across 48 ? resistor. Express your answer in volts. V = Figure 3.0 ? 16 ? 12 V 4.0 ? 48 ?

          For the circuit shown in the figure (Figure 1), find the current through and the potential difference across each resistor.
For the steps and strategies involved in solving a similar problem, you may view a Video Tutor Solution.
Part E
Find the current through 48 ? resistor.
Express your answer in amperes.
I =
Part F
Find the potential difference across 48 ? resistor.
Express your answer in volts.
V =
Figure
3.0 ?
16 ?
12 V
4.0 ?
48 ?

For the circuit shown in the figure (Figure 1), find the current through and the potential difference across each resistor.
For the steps and strategies involved in solving a similar problem, you may view a Video Tutor Solution.
Part E
Find the current through 48 ? resistor.
Express your answer in amperes.
I =
Part F
Find the potential difference across 48 ? resistor.
Express your answer in volts.
V =
Figure
3.0 ?
16 ?
12 V
4.0 ?
48 ?

Added by Irene P.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Hemraj Kumawat

05/11/2022

Step 1

Step 1: Apply nodal analysis at node 1 to obtain the equation: \[ \frac{V_1 - 12}{3} + \frac{V_1 - 2}{4} + \frac{V_1 - 2}{48} + \frac{V_1}{16} = 0 \] Show more…

Show all steps

Thanks for your feedback!

For the circuit shown in the figure (Figure 1), find the current through and the potential difference across each resistor Part E For the steps and strategies involved in solving similar problem; you may view Video Tutor Solution; Find the current through 48 Ω resistor Express your answer in amperes Part F Find the potential difference across 48 Ω resistor Express your answer in volts
