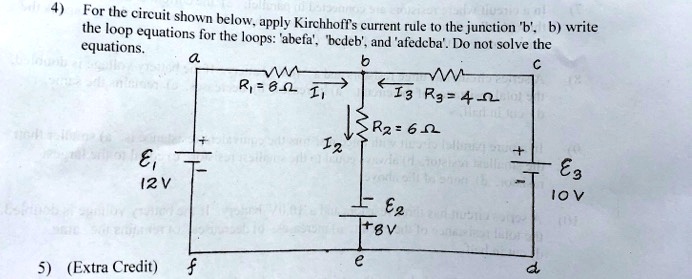

For the circuit shown below, apply Kirchhoff's current rule to the junction 'b', b) write the loop equations for the loops: 'abefa', 'bcdeb', and 'afedcba'. Do not solve the equations.
Added by Kimberly D.
Close
Step 1
Let's call the junction A. The currents entering the junction are I1 and I2, and the current leaving the junction is I3. So, we have: I1 + I2 = I3 Now, let's write the loop equations for the loops abefa', bedeb', and afedeba'. We will use Kirchhoff's voltage Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 68 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
$*$ (a) Write two loop rule equations and one junction rule equation for the circuit in Figure $P 16.23$ . (b) Use these equations to determine the current in each branch of the circuit for the case in which $R_{1}=0 \Omega, R_{2}=18 \Omega, R_{3}=9 \Omega$ and $\varepsilon=60 \mathrm{V}$
In the circuit drawn below, R = 10 ohms and Eâ‚€ = 5 Volts. a) What are the three equations do you get from Kirchhoff's laws? b) What are the values for the three currents in the circuit? (remember to show all algebra) c) In what directions do the three currents flow (draw a picture or indicate it on a picture)? d) If the wire between R and R (on the left) was cut, what current flows through the remaining resistors? (remember to show all algebra)
