Question

For the combination of capacitors shown in the figure; 5.0 µF 1.5 µF 8.0 µF 3.5 µF 0.75 µF 15 µF What is the equivalent capacitance, in microFarads, of the left-most pair of capacitors? 2.06 What is the equivalent capacitance, in microFarads, of the pair of capacitors in the lower, right corner of the circuit? 15.75 What is the equivalent capacitance, in microFarads, of the full configuration? 11.43 If a voltage of 12.0 V is applied from the top lead to the bottom lead, what voltage is there across the 3.5µF capacitor when fully charged? Blank 4 Use two decimal places for each answer, even though significant figures rules do not warrant it. (NOTE: This is a critical skill for the Capacitor Lab, as well as the test!. Think of other questions that can be asked for a circuit such as this to prepare for the test.)

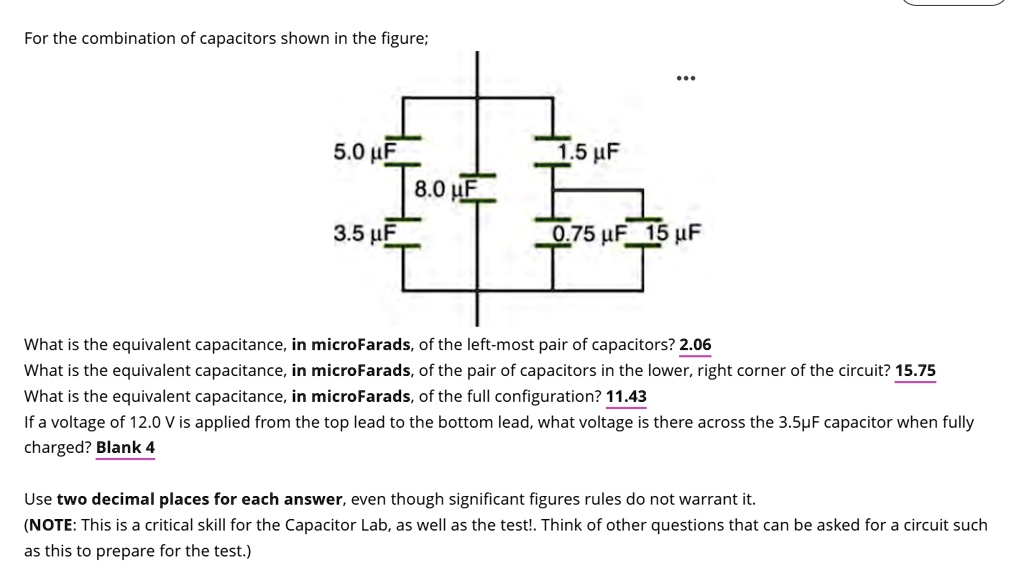

          For the combination of capacitors shown in the figure;
5.0 µF
1.5 µF
8.0 µF
3.5 µF
0.75 µF 15 µF
What is the equivalent capacitance, in microFarads, of the left-most pair of capacitors? 2.06
What is the equivalent capacitance, in microFarads, of the pair of capacitors in the lower, right corner of the circuit? 15.75
What is the equivalent capacitance, in microFarads, of the full configuration? 11.43
If a voltage of 12.0 V is applied from the top lead to the bottom lead, what voltage is there across the 3.5µF capacitor when fully charged? Blank 4
Use two decimal places for each answer, even though significant figures rules do not warrant it.
(NOTE: This is a critical skill for the Capacitor Lab, as well as the test!. Think of other questions that can be asked for a circuit such as this to prepare for the test.)
