For the cross-sectional areas shown, calculate the moment of inertia with respect to the horizontal X-X centroidal axis. (5 points) 28" X 4" 6" 4" X 3" 4" 16"
Added by James N.
Close
Step 1
Rectangle 1: Width = 28 inches Height = 3 inches Moment of inertia = (1/12) * width * height^3 = (1/12) * 28 * 3^3 = 63 in^4 Rectangle 2: Width = 16 inches Height = 4 inches Moment of inertia = (1/12) * width * height^3 = (1/12) * 16 * 4^3 = 85.33 in^4 Triangle Show more…
Show all steps
Your feedback will help us improve your experience
Ravindra Yadav and 71 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

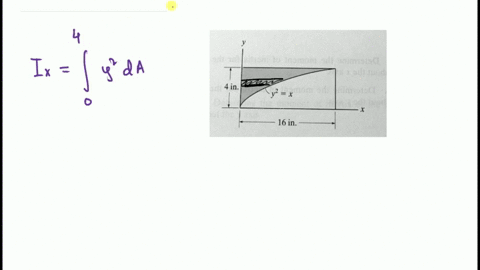

10-15. Determine the moment of inertia for the shaded area about the x axis. 4 in. y^2 = x 16 in. Prob. 10-15
Suman K.
Determine the moment of inertia of the composite area about the y-axis (Iy). Also, find the x distance to the centroid from the y-axis (x̄). Then, find the moment of inertia about the y-axis passing through the centroid (Īyʔ).
Hafiz S.
Determine the moments of inertia of the shaded area about both the x-axis and the y-axis.
