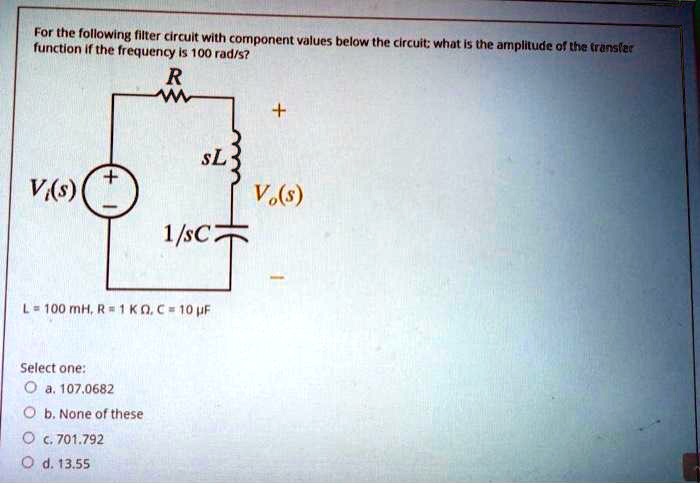

For the following filter circuit with component values below the circuit; what is the amplitude of the transfer function if the frequency is 100 rad/s? Vi(s), R, sL, 1/sC, Vo(s) L = 100 mH, R = 1 k?, C = 10 ?F Select one: a. 107.0682 b. None of these c. 701.792 d. 13.55
Added by -Ngeles C.
Close
Step 1
ZL = jωL = j(100)(0.1) = j10 Ω ZC = 1/(jωC) = 1/(j100)(10^-5) = -j10 Ω Show more…
Show all steps
