Question

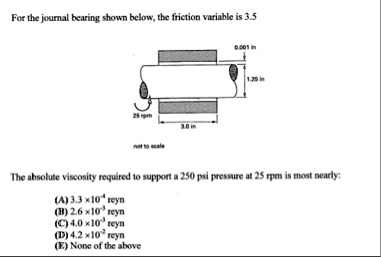

For the journal bearing shown below, the friction variable is 3.5 25 rpm 3.0 in not to scale 0.001 in 1.25 in The absolute viscosity required to support a 250 psi pressure at 25 rpm is most nearly: (A) 3.3 x$10^{-4}$ reyn (B) 2.6 x$10^{-3}$ reyn (C) 4.0 x$10^{-3}$ reyn (D) 4.2 x$10^{-2}$ reyn (E) None of the above

Name: for the journal bearing shown below the friction variable is 35 25 rpm 30 in not to scale 0001 in 125 in the absolute viscosity required to support a 250 psi pressure at 25 rpm is most nearl 30693
Uploaded: 2023-05-23T04:32:49-08:00
Duration: 1 min 3 s
Channel: Madhur L
Description: for the journal bearing shown below the friction variable is 35 25 rpm 30 in not to scale 0001 in 125 in the absolute viscosity required to support a 250 psi pressure at 25 rpm is most nearl 30693

          For the journal bearing shown below, the friction variable is 3.5
25 rpm
3.0 in
not to scale
0.001 in
1.25 in
The absolute viscosity required to support a 250 psi pressure at 25 rpm is most nearly:
(A) 3.3 x$10^{-4}$ reyn
(B) 2.6 x$10^{-3}$ reyn
(C) 4.0 x$10^{-3}$ reyn
(D) 4.2 x$10^{-2}$ reyn
(E) None of the above

for the journal bearing shown below the friction variable is 35 25 rpm 30 in not to scale 0001 in 125 in the absolute viscosity required to support a 250 psi pressure at 25 rpm is most nearl 30693

Added by Ashley T.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

05/23/2023

Step 1

The friction variable (S) is given as 3.5. The rotational speed (N) is 25 rpm. The length of the bearing (L) is 3.0 in. The diameter of the journal (D) is 1.25 in. The radial clearance (c) is 0.001 in. (This is half of the diametral clearance, but the diagram Show more…

Show all steps
