For the network shown in the Figure, find v(t) for $t > 0$. $t = 0$ 6? 5? 2 A 12 ? 20 ? 0.5 H 20 V Notes: 1. Show all calculation details
Added by Amy J.
Close
Step 1
- Starting from the top left corner and moving clockwise, we have: - 10V - 4i(t) - 2v(t) = 0 Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 55 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Find $v_{o}(t)$ for $t>0$ in the network shown in Fig. P14.50.
Find $V_{o}$ in the network in Fig. P5.9 using superposition.

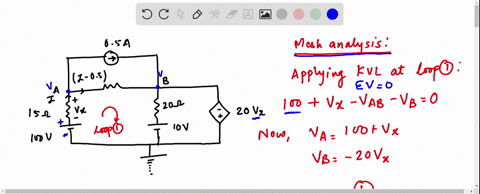

Using mesh analysis, find the voltage Vx in the network shown in the figure. 0.5 A 20Ω 15Ω 20V+
