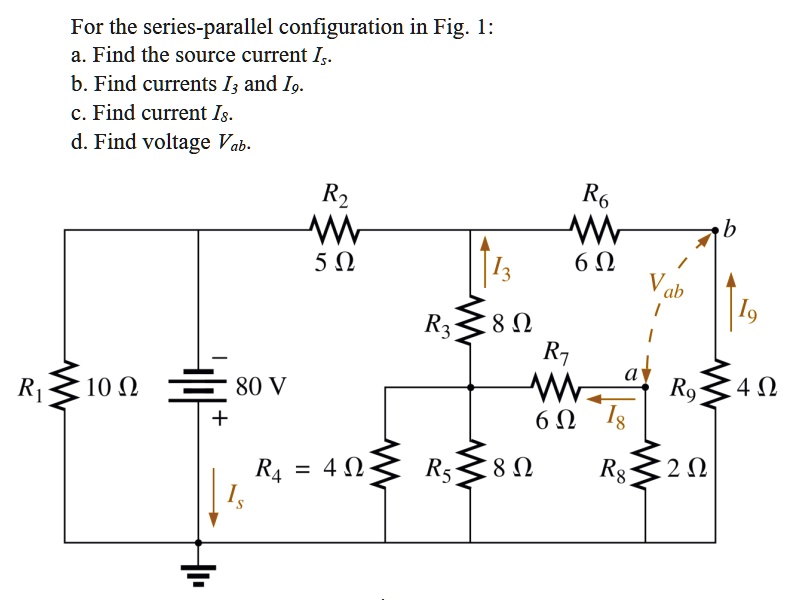

For the series-parallel configuration in Fig. 1: a. Find the source current $I_s$. b. Find currents $I_3$ and $I_9$. c. Find current $I_8$. d. Find voltage $V_{ab}$.
Added by Robin M.
Close
Step 1
- The circuit has a combination of series and parallel resistors. We need to simplify the circuit step by step. Show more…
Show all steps
Your feedback will help us improve your experience
Supratim Pal and 69 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

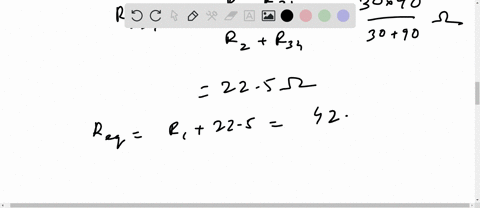

5.B. For the series-parallel arrangement shown, V=300 V,R1=20 Ω, R2 = 30 Ω, R3= 40 Ω, R4= 50 Ω Find: (a) the Supply Current, (b) the Current flowing through each resistor, and (c) the PD across R4 resistor. [3 Marks]
Supratim P.
[1] Determine the voltage across the current source IS using series-parallel analysis. Determine current through R3 using current-division. Determine voltage across R8 using voltage-division. Determine power for R1. State whether energy is received or supplied by R1.
Adi S.
For the series-parallel arrangement shown in the figure below, find (a) the supply current, (b) the current flowing through each resistor, and (c) the potential difference across each resistor.
