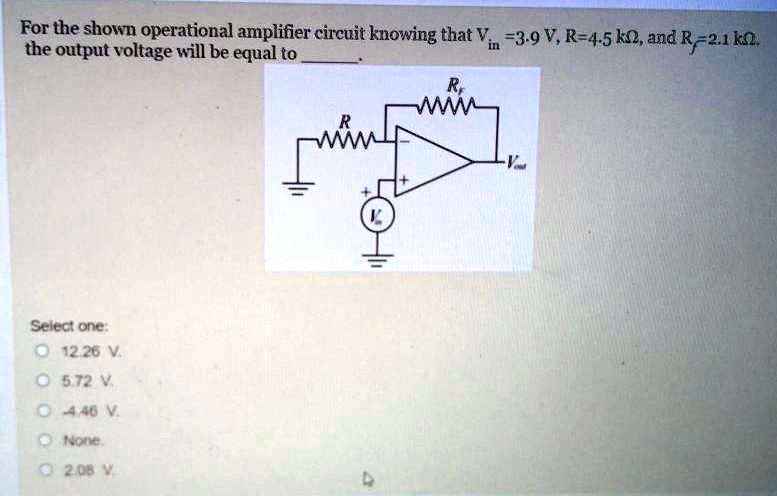

For the shown operational amplifier circuit knowing that $V_{in} = 3.9 \text{ V}$, $R = 4.5 \text{ k}\Omega$, and $R_f = 2.1 \text{ k}\Omega$. the output voltage will be equal to _____ Select one: $\circ$ 12.26 V. $\circ$ 5.72 V. $\circ$ 4.46 V. $\circ$ None. $\circ$ 2.08 V.
Added by Mark W.
Close
Step 1
We'll call the node connected to the non-inverting input of the operational amplifier as Node A, the node connected to the inverting input as Node B, and the output node as Node C. Since the operational amplifier is in negative feedback configuration, we can Show more…
Show all steps
Your feedback will help us improve your experience
Ronald Prasad and 81 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Sri K.
An amplifier with $R_{i}=12 \mathrm{k} \Omega, R_{o}=1 \mathrm{k} \Omega$ and $A_{y x}=-10$ is operated with a $1-k \Omega$ load. A source having a Thevenin resistance of $4 \mathrm{k} \Omega$ and a short-circuit current of $2 \cos (200 x t)$ mA is connected to the input terminals. Determine the output voltage as a function of time and the power gain.

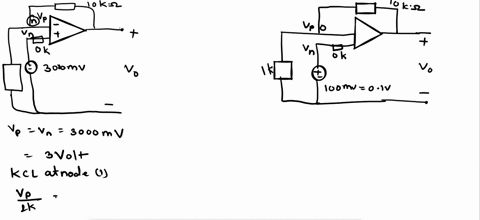

In the figure below, the operational amplifier is powered from a 15-volt power supply. Resistor R is 10k and the input signal is a voltage source of 300mV with zero internal resistance (Rs=0k). What is the output voltage Vo in volts? R2 is 1k.
