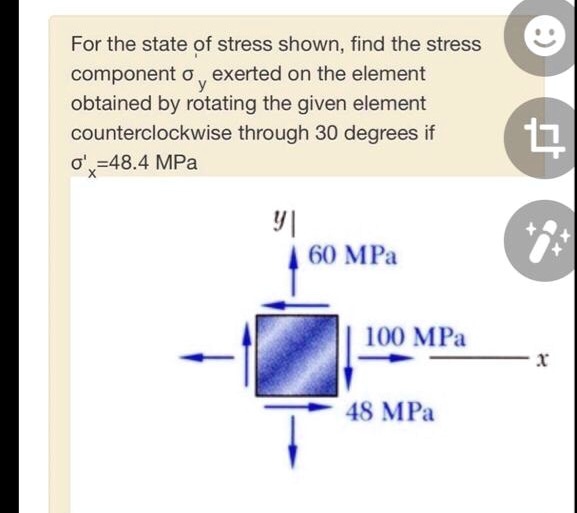

For the state of stress shown, find the stress component ??y exerted on the element obtained by rotating the given element counterclockwise through 30 degrees if ?'x=48.4 MPa
Added by Patricia M.
Close
Step 1
Step 1: Read the original stresses from the figure: σx = 100 MPa, σy = 60 MPa (and the in-plane shear is 48 MPa with the sign shown in the figure). Show more…
