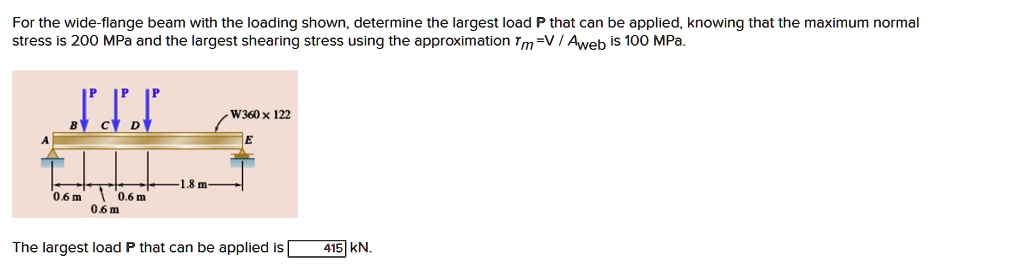

For the wide-flange beam with the loading shown, determine the largest load P that can be applied, knowing that the maximum normal stress is 200 MPa and the largest shearing stress using the approximation $\tau_m = V / A_{web}$ is 100 MPa. W360 x 122 The largest load P that can be applied is 415 kN.

Name: for the wide flange beam with the loading shown determine the largest load p that can be applied knowing that the maximum normal stress is 200 mpa and the largest shearing stress using the a 14057
Uploaded: 2022-12-14T20:52:36-08:00
Duration: 2 min 30 s
Channel: Lainey Roebuck
Description: for the wide flange beam with the loading shown determine the largest load p that can be applied knowing that the maximum normal stress is 200 mpa and the largest shearing stress using the a 14057

          For the wide-flange beam with the loading shown, determine the largest load P that can be applied, knowing that the maximum normal stress is 200 MPa and the largest shearing stress using the approximation $\tau_m = V / A_{web}$ is 100 MPa.
W360 x 122
The largest load P that can be applied is 415 kN.

for the wide flange beam with the loading shown determine the largest load p that can be applied knowing that the maximum normal stress is 200 mpa and the largest shearing stress using the a 14057

Added by Katherine S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Lainey Roebuck

12/14/2022

Step 1

The beam is simply supported at A and E. There are three concentrated loads P at B, C, and D. The distances are: AB = 0.6 m BC = 0.6 m CD = 0.6 m DE = 1.8 m - (0.6 + 0.6 + 0.6) = 1.8 m - 1.8 m = 0 m. This means point D is at the support E. Let's re-examine the Show more…
