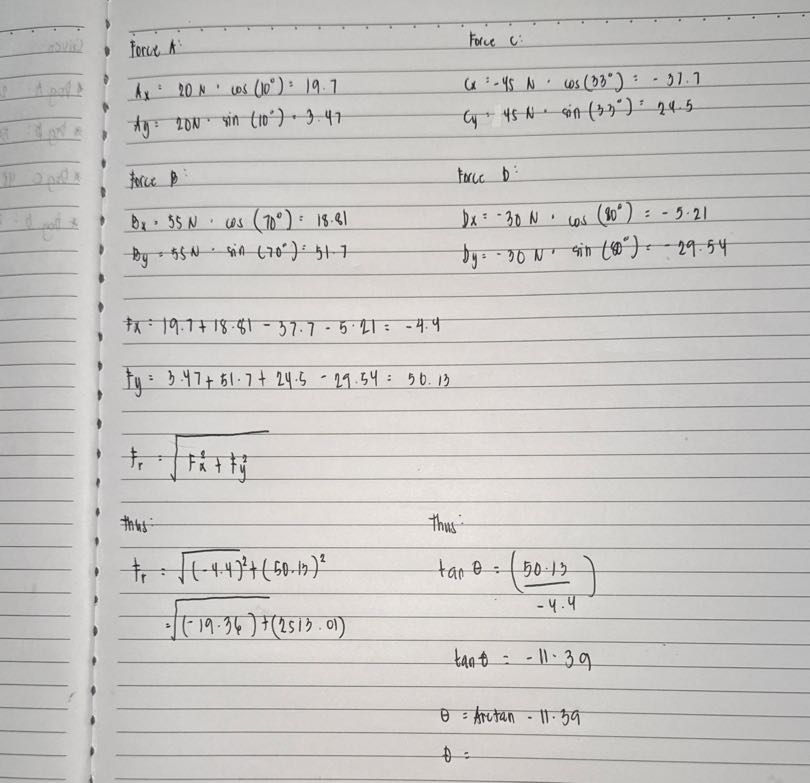

Force 1 \[ \begin{array}{l} A_{x}=20 \mathrm{~N} \cdot \cos \left(10^{\circ}\right)=19.7 \\ A_{y}=20 \mathrm{~N} \cdot \sin \left(10^{\circ}\right)=3.47 \end{array} \] force B \[ \begin{array}{l} B_{x}=55 \mathrm{~N}=\cos \left(70^{\circ}\right)=18.81 \\ B_{y}=55 \mathrm{~N}=\sin \left(70^{\circ}\right)=51.7 \end{array} \] Force (: \[ \begin{array}{l} C=-45 N \cdot \cos \left(33^{\circ}\right)=-37.7 \\ C_{4}=45 N \cdot \sin \left(33^{\circ}\right)=24.5 \end{array} \] Force \( D \) : \[ \begin{array}{l} D_{x}=-30 \mathrm{~N} \cdot \cos \left(80^{\circ}\right)=-5.21 \\ D_{y}=-30 \mathrm{~N} \cdot \sin \left(40^{\circ}\right)=-29.54 \end{array} \] \[ \begin{array}{l} f_{x}=19.7+18.81-37.7-5.21=-4.4 \\ f_{y}=3.47+51.7+24.5-29.54=50.13 \\ f_{r}=\sqrt{F_{x}^{2}+F_{y}^{2}} \end{array} \] Hhys: \[ \begin{aligned} f_{r} & =\sqrt{(-4.4)^{2}}+(50.13)^{2} \\ & =\sqrt{(-19.36)}+(2513.01) \end{aligned} \] Thus: \[ \begin{array}{l} \tan \theta=\left(\frac{50.13}{-4.4}\right) \\ \tan \theta=-11.39 \\ \theta=\operatorname{Arctan}-11.39 \\ \theta= \end{array} \]
Added by Lisa B.
Close
Step 1
- \( A_x = 20 \, \text{N} \cdot \cos(10^\circ) = 19.7 \, \text{N} \) - \( A_y = 20 \, \text{N} \cdot \sin(10^\circ) = 3.47 \, \text{N} \) Show more…
Show all steps
Your feedback will help us improve your experience
Sikandar Baig and 82 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Forces $\vec{F}_{1}, \vec{F}_{2}$, and $\vec{F}_{3}$ act on the structure of Fig. 12-35, shown in an overhead view. We wish to put the structure in equilibrium by applying a fourth force, at a point such as $P$. The fourth force has vector components $\vec{F}_{h}^{t}$ and $\vec{F}_{v}$. We are given that $a=2.0 \mathrm{~m}, b=3.0 \mathrm{~m}$, $c=1.0 \mathrm{~m}, F_{1}=30 \mathrm{~N}, F_{2}=10 \mathrm{~N}$, and $F_{3}=5.0 \mathrm{~N}$. Find (a) $F_{h}$, (b) $F_{v}$, and (c) $d$.
Three forces act on a $2.00-\mathrm{kg}$ object at angles $\theta 1=40.0^{\circ}, \theta_{1}=40.0^{\circ}$, $\theta 2=60.0^{\circ}, \theta_{2}=60.0^{\circ}$, and $\theta 3=20.0^{\circ}, \theta_{3}=20.0^{\circ}$, as shown in Figure 4-28. Find the magnitude of $\mathrm{F} 2 \rightarrow \overrightarrow{\boldsymbol{F}_{2}}$ and $\mathrm{F} 3 \rightarrow \overrightarrow{\boldsymbol{F}_{3}}$ if the magnitude of $F_{1}$ is $1.00 \mathrm{~N}$ and the acceleration of the object is $1.50 \mathrm{~m} / \mathrm{s}^{2}$ toward the $+x$ direction. Example $4-2$
Forces $\vec{F}_{1}, \vec{F}_{2},$ and $\vec{F}_{3}$ act on the structure of Fig. $12-33$ shown in an overhead view. We wish to put the structure in equilibrium by applying a fourth force, at a point such as $P .$ The fourth force has vector components $\overline{F}_{h}$ and $\vec{F}_{v}$ . We are given that $a=2.0 \mathrm{m}$, $b=3.0 \mathrm{m}, c=1.0 \mathrm{m}, F_{1}=20 \mathrm{N}, F_{2}=10 \mathrm{N},$ and $F_{3}=5.0 \mathrm{N}$ . Find $(\mathrm{a})$ $F_{h v}(\mathrm{b}) F_{v},$ and $(\mathrm{c}) d .$
