force on the block from the floor and (b) the block's acceleration. •10 Figure 6-20 shows an initially stationary block of mass $m$ on a floor. A force of magnitude 0.500$mg$ is then applied at upward angle $\theta = 20^\circ$. What is the magnitude of the acceleration of the block across the floor if the friction coef- fcients are (a) $\mu_s = 0.600$ and $\mu_k = 0.500$ and (b) $\mu_s = 0.400$ and $\mu_k = 0.300$?

          force on the block from the floor
and (b) the block's acceleration.

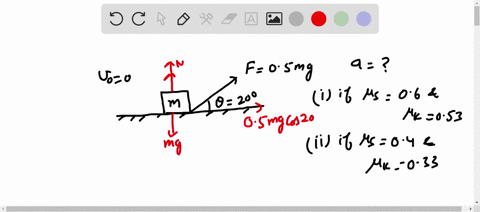

•10 Figure 6-20 shows an initially
stationary block of mass $m$ on a
floor. A force of magnitude 0.500$mg$
is then applied at upward angle
$\theta = 20^\circ$. What is the magnitude of
the acceleration of the block across the floor if the friction coef-
fcients are (a) $\mu_s = 0.600$ and $\mu_k = 0.500$ and (b) $\mu_s = 0.400$ and
$\mu_k = 0.300$?

force on the block from the floor
and (b) the block's acceleration.
•10 Figure 6-20 shows an initially
stationary block of mass m on a
floor. A force of magnitude 0.500mg
is then applied at upward angle
θ = 20^∘. What is the magnitude of
the acceleration of the block across the floor if the friction coef-
fcients are (a) = 0.600 and = 0.500 and (b) = 0.400 and
= 0.300?

Added by Kirk S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Justin Swantek

Step 1

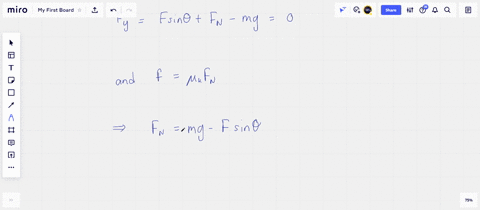

First, let's resolve the applied force into its vertical and horizontal components. The vertical component of the force is Fv = F * sin(θ) = 0.500mg * sin(20°). Show more…
