6. Free-Response Questions Four point charges, each with a magnitude $|q| = 6.0$ nC, are fixed at different locations along the perimeter of a square of side length $d = 4.0$ cm. The origin of the xy-plane is fixed at the top right corner of the square. d d/2 q q O y q q x d/4 a. Draw and label a diagram that includes all electric field vectors at point O. Include x- and y-components if necessary. b. Calculate the magnitude and direction of the net electric field $\vec{E}$ at point O. c. If a charge $Q = -3$ µC is placed at point O, calculate the magnitude and direction of the electric force $\vec{F}_\text{on } Q$. Bonus: Charge Q now accelerates off to an infinite distance away from the sources. If a fifth charge $q'$ is now placed at the location $\vec{r} = d(\hat{i} + \hat{j})$, determine its charge that would create a net electric field of xero at point O.

          6.
Free-Response Questions

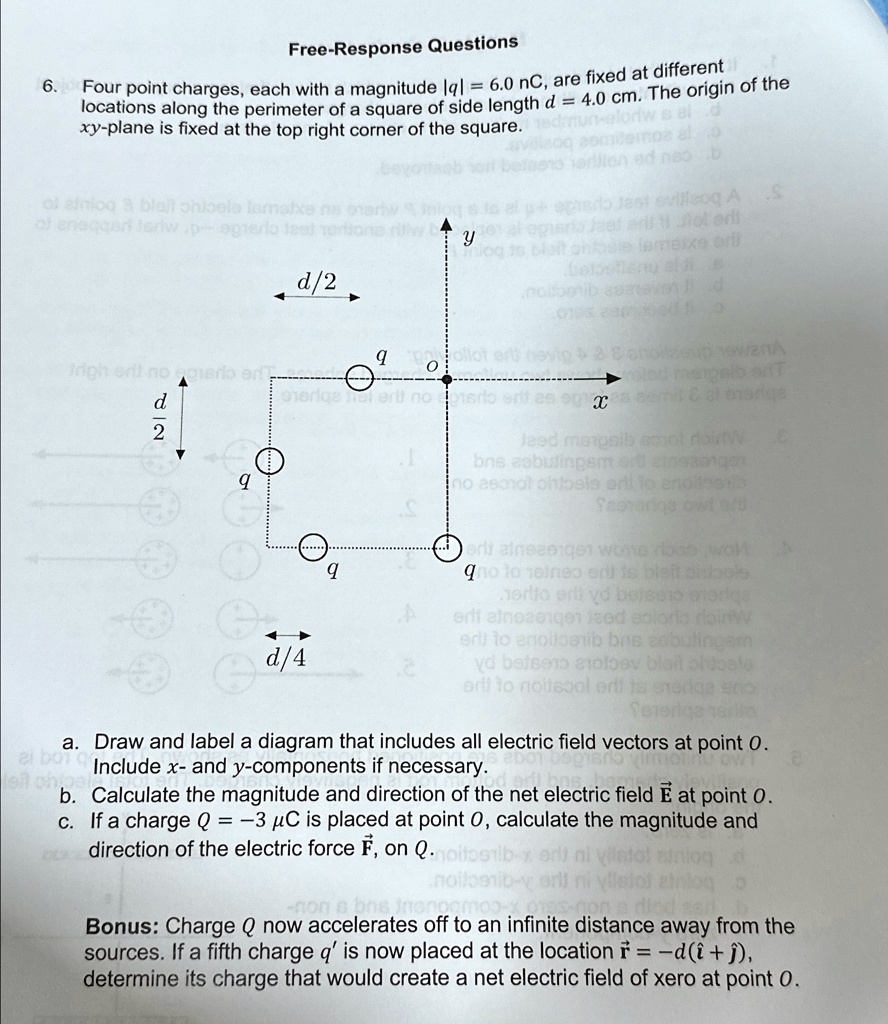

Four point charges, each with a magnitude $|q| = 6.0$ nC, are fixed at different
