fracture 300 200 Stress (MPa) 100 0 0.0 0.002 0.004 0.006 0.008 strain (mm/mm)
Added by Luis Miguel P.
Close
Step 1

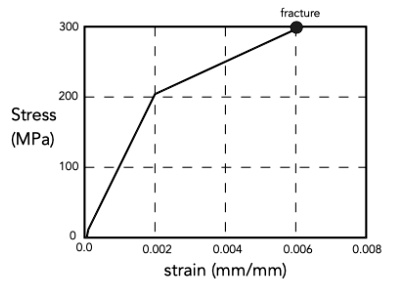

The 0.2% yield strength is the stress at which the material starts to deform plastically. In the given stress-strain diagram, we can see that the stress at 0.2% strain is approximately 200 MPa. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 101 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Using the Stress-Strain curve, what is the Ultimate Tensile Strength of this metal?
Madhur L.

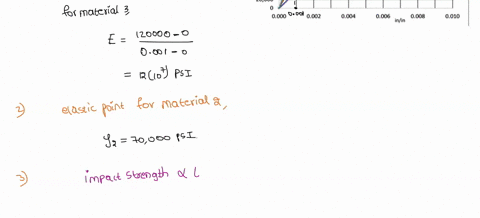

a - Determine the modulus of elasticity (Young Modulus) for the material 3 b - determine the Yield Point Stress (Yield Stress) for material 2 c - Which material is better for impact and explain why based on the stress/strain diagram d - estimate the toughness for material 1 Which of the three materials will strain less before breaking Which of the three materials is more rigid? Which of the three materials is weaker?
Suman K.
For the stress-strain curve on the graph below, estimate the strain hardening exponent, calculate the modulus of resilience, and tensile toughness for this material. Show your work and explain your method. Note: The inset graph is the portion of the large graph at low strain. Compare the modulus of resilience calculated from the graph with the common approximation that σY = EεY.
Supreeta N.
