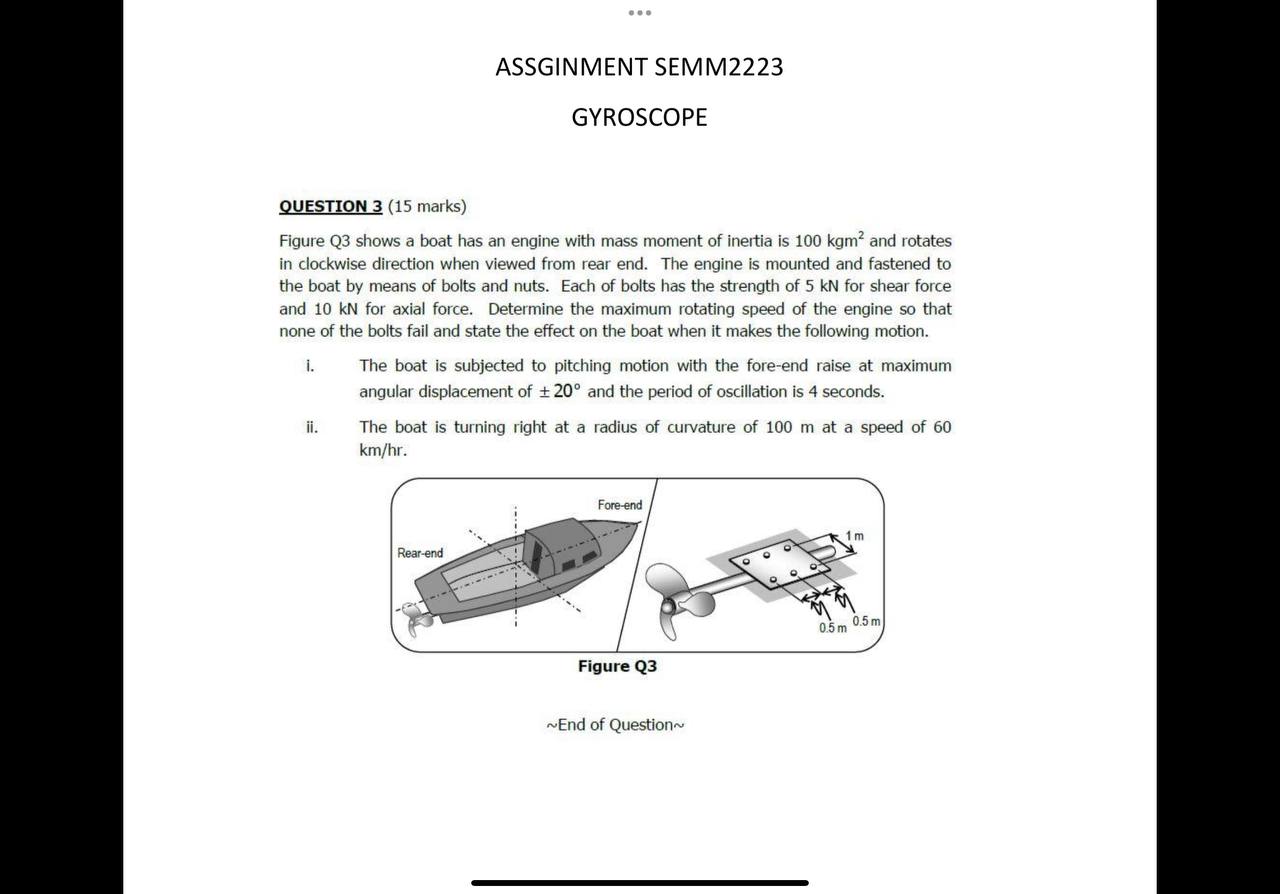

ASSGINMENT SEMM2223 GYROSCOPE QUESTION 3 (15 marks) Figure Q3 shows a boat has an engine with mass moment of inertia is \( 100 \mathrm{kgm}^{2} \) and rotates in clockwise direction when viewed from rear end. The engine is mounted and fastened to the boat by means of bolts and nuts. Each of bolts has the strength of \( 5 \mathrm{kN} \) for shear force and \( 10 \mathrm{kN} \) for axial force. Determine the maximum rotating speed of the engine so that none of the bolts fail and state the effect on the boat when it makes the following motion. i. The boat is subjected to pitching motion with the fore-end raise at maximum angular displacement of \( \pm 20^{\circ} \) and the period of oscillation is 4 seconds. ii. The boat is turning right at a radius of curvature of \( 100 \mathrm{~m} \) at a speed of 60 \( \mathrm{km} / \mathrm{hr} \). Figure Q3 \( \sim \) End of Question
Added by Zhilal Al Kiram A.
Close
Your feedback will help us improve your experience
Ajay Singhal and 74 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

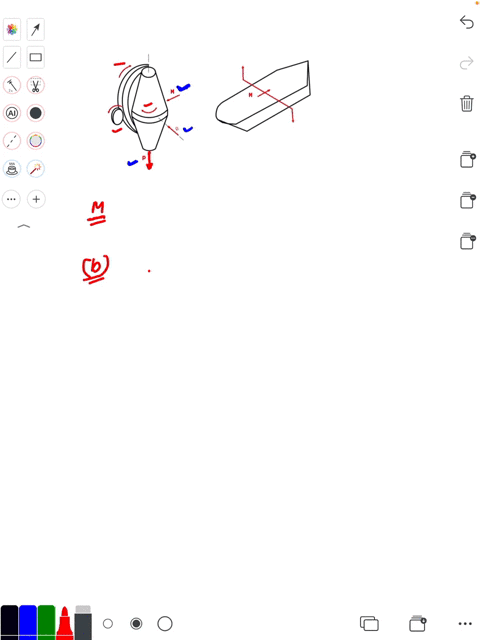

The figure shows a gyro mounted with a vertical axis and used to stabilize a hospital ship against rolling. The motor $A$ turns the pinion which precesses the gyro by rotating the large precession gear $B$ and attached rotor assembly about a horizontal transverse axis in the ship. The rotor turns inside the housing at a clockwise speed of 960 rev/min as viewed from the top and has a mass of $80 \mathrm{Mg}$ with radius of gyration of $1.45 \mathrm{m}$. Calculate the moment exerted on the hull structure by the gyro if the motor turns the precession gear $B$ at the rate of $0.320 \mathrm{rad} / \mathrm{s} .$ In which of the two directions, $(a)$ or (b), should the motor turn in order to counteract a roll of the ship to port?
The boat has a weight of 500 lb and is held in position off the side of a ship by the spars at $A$ and $B . A$ man having a weight of 130 lb gets in the boat, wraps a rope around an overhead boom at $C,$ and ties it to the end of the boat as shown. If the boat is disconnected from the spars, determine the minimum number of half turns the rope must make around the boom so that the boat can be safely lowered into the water at constant velocity. Also, what is the normal force between the boat and the man? The coefficient of kinetic friction between the rope and the boom is $\mu_{s}=0.15 .$ Hint: The problem requires that the normal force between the man's feet and the boat be as small as possible.
Figure $\mathrm{P} 5.19$ shows the horizontal forces acting on a sailboat moving north at constant velocity, seen from at point straight above its mast. At the particular speed of the sailboat, the water exerts a 220 -N drag force on its hull and $\theta=40.0^{\circ} .$ For each of the situations (a) and (b) described below, write two component equations representing Newton's second law. Then solve the equations for $P$ (the force exerted by the wind on the sail) and for $n$ (the force exerted by the water on the keel). (a) Choose the $x$ direction as east and the $y$ direction as north. (b) Now choose the $x$ direction as $\theta=$ $40.0^{\circ}$ north of east and the $y$ direction as $\theta=40.0^{\circ}$ west of north. (c) Compare your solutions to parts (a) and (b). Do the results agree? Is one method significantly easier?
