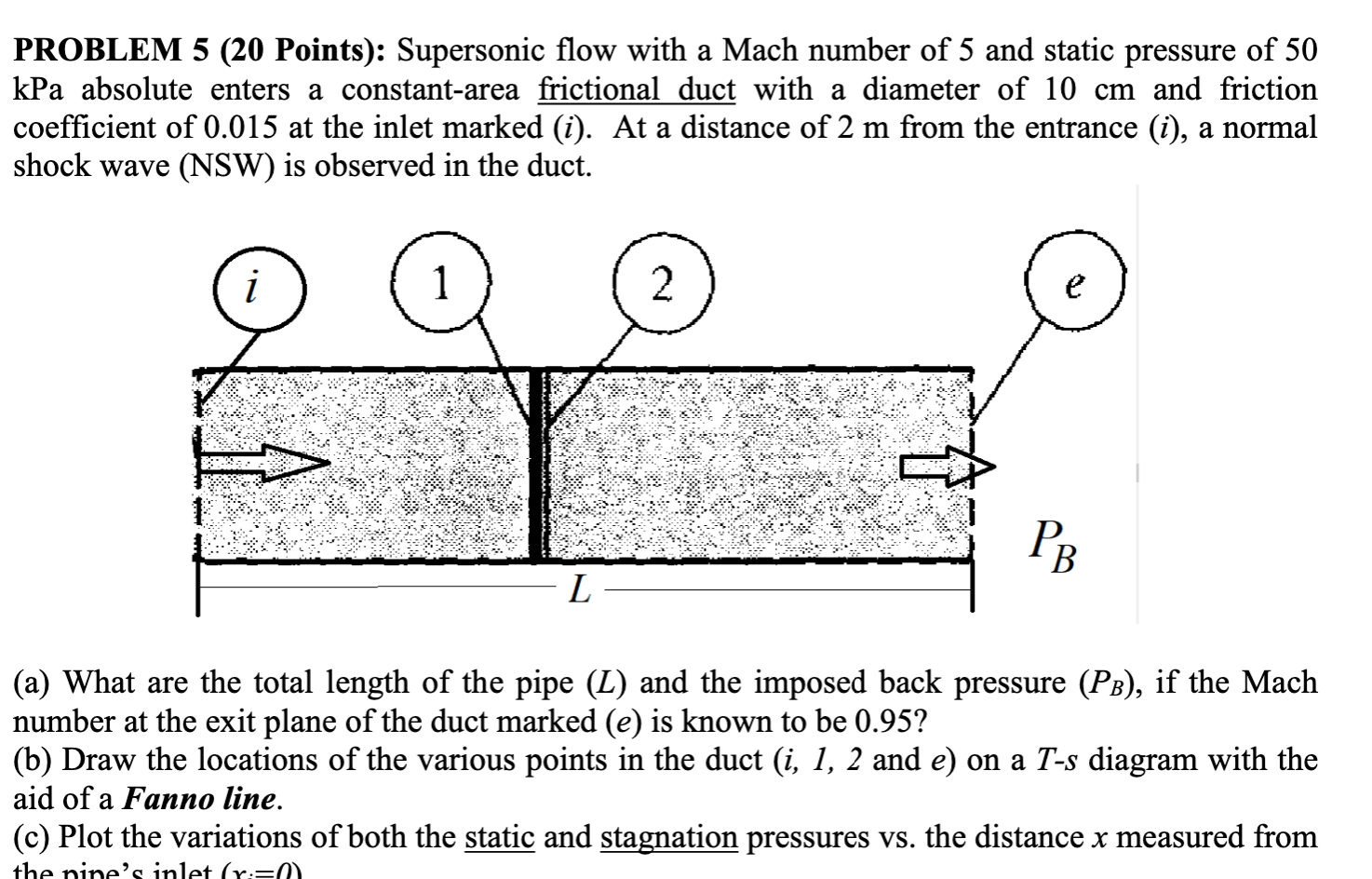

PROBLEM 5 (20 Points): Supersonic flow with a Mach number of 5 and static pressure of 50 \( \mathrm{kPa} \) absolute enters a constant-area frictional duct with a diameter of \( 10 \mathrm{~cm} \) and friction coefficient of 0.015 at the inlet marked ( \( i) \). At a distance of \( 2 \mathrm{~m} \) from the entrance \( (i) \), a normal shock wave (NSW) is observed in the duct. (a) What are the total length of the pipe \( (L) \) and the imposed back pressure \( \left(P_{B}\right) \), if the Mach number at the exit plane of the duct marked \( (e) \) is known to be 0.95 ? (b) Draw the locations of the various points in the duct \( (i, 1,2 \) and \( e \) ) on a \( T-s \) diagram with the aid of a Fanno line. (c) Plot the variations of both the static and stagnation pressures vs. the distance \( x \) measured from
Added by John J.
Close
Step 1
015. Show more…
Show all steps
Your feedback will help us improve your experience
Ravindra Samadiya and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A supersonic wind tunnel is to be operated at $M=2.2$ in the test section. Upstream from the test section, the nozzle throat area is $0.07 \mathrm{m}^{2} .$ Air is supplied at stagnation conditions of $500 \mathrm{K}$ and $1.0 \mathrm{MPa}$ (abs). At one flow condition, while the tunnel is being brought up to speed, a normal shock stands at the nozzle exit plane. The flow is steady. For this starting condition, immediately downstream from the shock find (a) the Mach number, (b) the static pressure, (c) the stagnation pressure, and (d) the minimum area theoretically possible for the second throat downstream from the test section. On a $T s$ diagram show static and stagnation state points and the process path.
A smooth constant-area duct assembly $(D=$ $150 \mathrm{mm}$ ) is to be fed by a converging-diverging nozzle from a tank containing air at $295 \mathrm{K}$ and $1.0 \mathrm{MPa}$ (abs). Shock-free operation is desired. The Mach number at the duct inlet is to be 2.1 and the Mach number at the duct outlet is to be 1.4 The entire assembly will be insulated. Find (a) the pressure required at the duct outlet, (b) the duct length required, and (c) the change in specific entropy. Show the static and stagnation state points and the process path on a $T s$ diagram.
A supersonic aircraft flies at $M_{1}=2.7$ at $20 \mathrm{km}$ altitude on a standard day. Air enters the engine inlet system, where it is slowed isentropically to $M_{2}=1.3 .$ A normal shock occurs at that location. The resulting subsonic flow is decelerated further to $M_{4}=0.40 .$ The subsonic diffusion is adiabatic but not isentropic; the final pressure is $104 \mathrm{kPa}$ (abs). Evaluate (a) the stagnation temperature for the flow, (b) the pressure change across the shock, (c) the entropy change, $s_{4}-s_{1},$ and (d) the final stagnation pressure. Sketch the process path on a Ts diagram, indicating all static and stagnation states.
