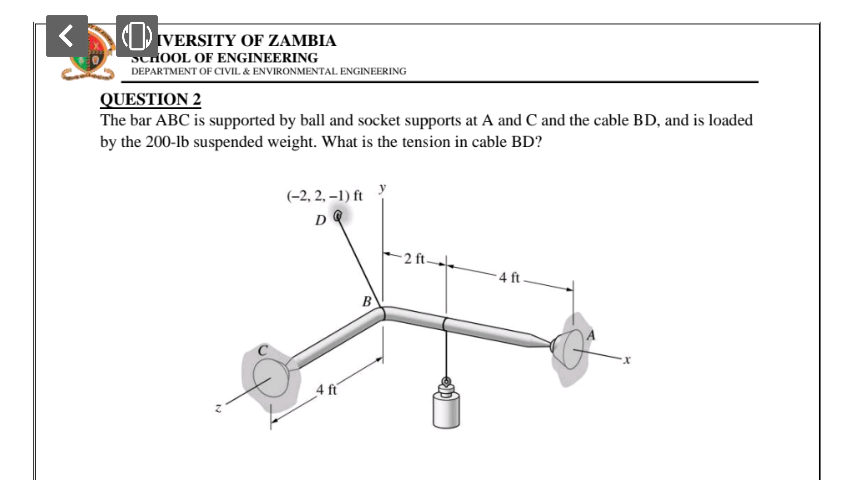

(1) IVERSITY OF ZAMBIA SCIOOL OF ENGINEERING DEPARTMENT OF CIVIL. \& ENVIRONMENTAL ENGINEERING QUESTION 2 The bar ABC is supported by ball and socket supports at A and \( \mathrm{C} \) and the cable BD, and is loaded by the 200-lb suspended weight. What is the tension in cable BD?
Added by Adnas M.
Close
Step 1
First, we need to analyze the forces acting on the bar ABC. There are three forces acting on it: the 200-lb weight, the reaction force at A, and the reaction force at C. Show more…
Show all steps
Your feedback will help us improve your experience
Maitreya E and 89 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The tensile force at Cable AB is 1,800 lbs. The system is in balance. Find Pmax. Calculate the compressive force at column AC.
Gregory D.

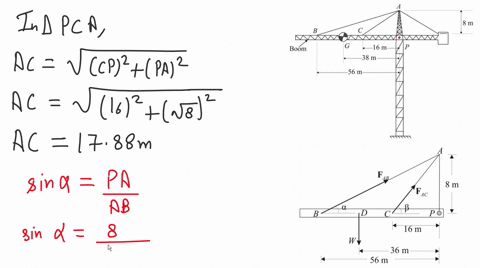

The mass of the crane's boom is 9000 kg. Its weight acts at G. The sum of the moments about P due to the boom's weight, the force exerted at B by the cable AB, and the force exerted at C by the cable AC is zero. Assume that the tensions in cables AB and AC are equal. Determine the tension in the cables.
Prabhat T.
