Procedure Worksheet Name: Step 1: Consider the line-angle structure of 3,4-dimethylhexane shown in figure 2. Figure 2: 3,4-dimethylhexane Draw the skeletal structure of this molecule. Count all atoms present and provide chemical formula for the molecule. Provide degrees of unsaturation for the given molecule Step 2: Using modeling kit provided, assemble 3,4-dimethylhexane as shown in figure 2. Pay close attention to the 3-D structure and place the methyl groups according to the drawing. Your structure should contain ALL atoms present in 3,4-dimethylhexane. Step 3: Flip the molecule over (think of a pancake flip) and draw the resulting structure using line-angle format. Step 4. If possible, rotate the molecule around a bond between carbon 3 and 4. Draw the resulting structure using line-angle format. If rotation is not possible, explain why.

          Procedure Worksheet
Name:

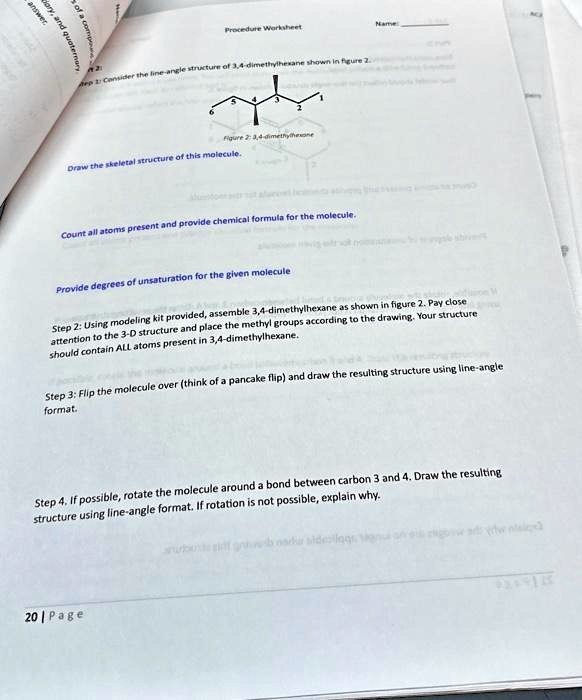

Step 1: Consider the line-angle structure of 3,4-dimethylhexane shown in figure 2.
Figure 2: 3,4-dimethylhexane
Draw the skeletal structure of this molecule.
Count all atoms present and provide chemical formula for the molecule.
Provide degrees of unsaturation for the given molecule
Step 2: Using modeling kit provided, assemble 3,4-dimethylhexane as shown in figure 2. Pay close
attention to the 3-D structure and place the methyl groups according to the drawing. Your structure
should contain ALL atoms present in 3,4-dimethylhexane.
Step 3: Flip the molecule over (think of a pancake flip) and draw the resulting structure using line-angle
format.
Step 4. If possible, rotate the molecule around a bond between carbon 3 and 4. Draw the resulting
structure using line-angle format. If rotation is not possible, explain why.

Procedure Worksheet
Name:
Step 1: Consider the line-angle structure of 3,4-dimethylhexane shown in figure 2.
Figure 2: 3,4-dimethylhexane
Draw the skeletal structure of this molecule.
Count all atoms present and provide chemical formula for the molecule.
Provide degrees of unsaturation for the given molecule
Step 2: Using modeling kit provided, assemble 3,4-dimethylhexane as shown in figure 2. Pay close
attention to the 3-D structure and place the methyl groups according to the drawing. Your structure
should contain ALL atoms present in 3,4-dimethylhexane.
Step 3: Flip the molecule over (think of a pancake flip) and draw the resulting structure using line-angle
format.
Step 4. If possible, rotate the molecule around a bond between carbon 3 and 4. Draw the resulting
structure using line-angle format. If rotation is not possible, explain why.
