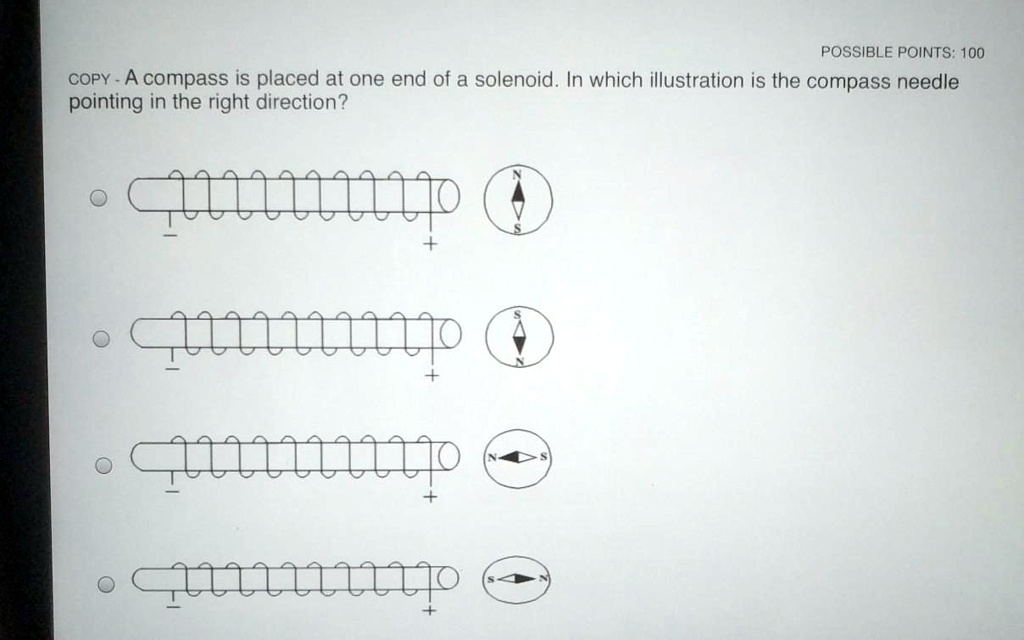

A compass is placed at one end of a solenoid. In which illustration is the compass needle pointing in the right direction?
Added by Susan B.
Close
Step 1
The current flows from the positive terminal to the negative terminal. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 65 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The following figure shows the top view of a compass next to a long straight wire. An arrow indicates the north pole of the compass. When a switch is closed, a current is established in the wire, and the compass needle initially rotates as indicated. Is the direction of the current in the wire into the page or out of the page? Explain. (FIGURE CANNOT COPY)
A compass is placed directly on top of a wire (needle not shown). The current in the wire flows to the right. Which way does the north not shown). The current in the wire flows to the right. Which way does the north. (FIGURE CANNOT COPY)
A compass is placed directly on top of a wire (needle not shown). The current in the wire flows to the right. Which way does the north end of the needle point? Explain. (Ignore Earth's magnetic field.)
