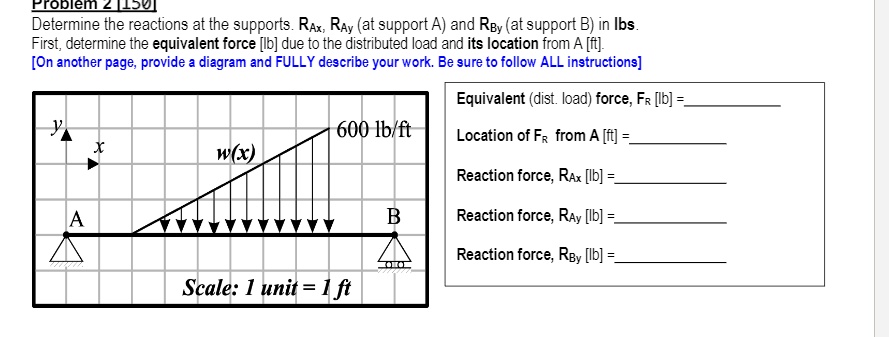

Determine the reactions at the supports. RAx, RAy (at support A) and RBy (at support B) in lbs. First, determine the equivalent force [lb] due to the distributed load and its location from A [ft]. [On another page, provide a diagram and FULLY describe your work. Be sure to follow ALL instructions.]
Equivalent (dist. load) force, FR [lb] =
Location of FR from A [ft] =
Reaction force, RAx [lb] =
Reaction force, RAy [lb] =
Reaction force, RBy [lb] =
Scale: 1 unit = 1 ft
