Question

logic diagram? 5. Draw the relay logic diagram for a circuit that operates as follows: A. The main switch (MSW) is the emergency stop switch, which is normally closed. B. When the red pushbutton (PBR) is pressed, the red pilot light and motor one (M1) are energized. They will stay on until MSW is opened. C. When the green pushbutton (PBG) is closed, both white and green pilot lights turn on, and motor one (M1) and motor two (M2) will run. They will stay on until MSW is opened. 6. Draw the relay logic diagram for a circuit that operates as follows: A. The main switch (MSW) is the emergency stop switch, which is normally closed. B. When the red pushbutton (PBR) is pressed, the red pilot light turns on and stays on until MSW is opened. C. When the green pushbutton (PBG) is pressed, white and green pilot lights turn on and stay on until MSW is opened. 7. Draw the relay logic diagram for a circuit that operates as follows: A. When switch one (SW1) is closed, the green pilot light turns on. B. When switch two (SW2) is closed, the yellow pilot light turns on. C. When both SW1 and SW2 are closed, the green and yellow pilot lights turn off, and the red and white pilot lights turn on.

          logic diagram?

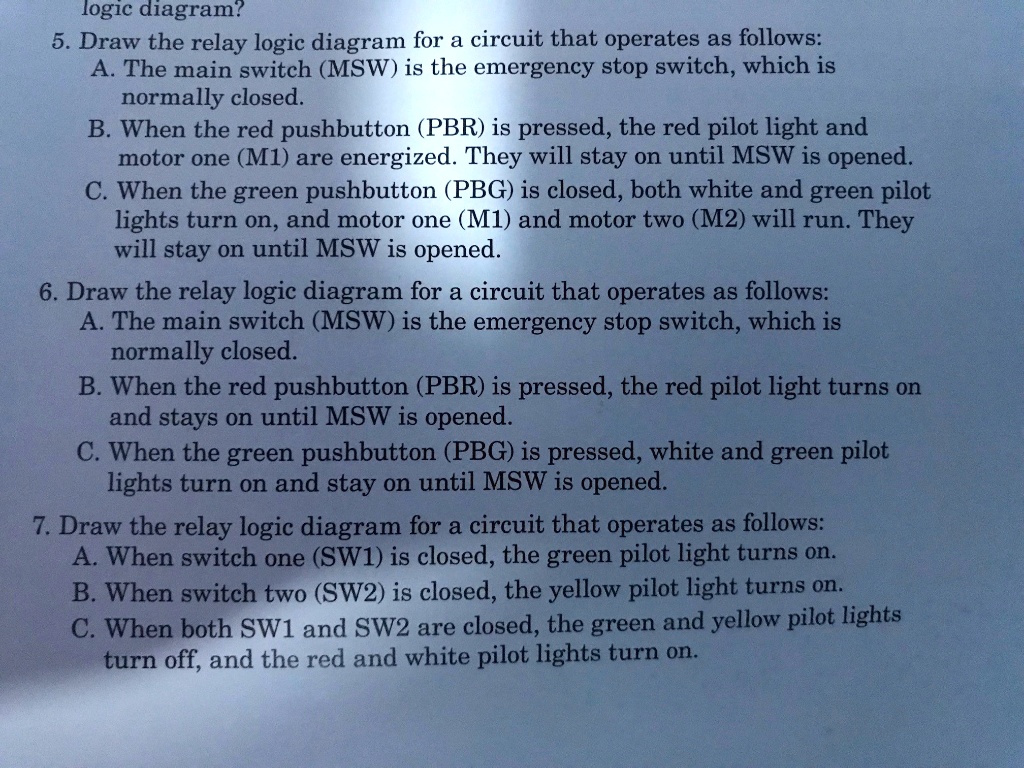

5. Draw the relay logic diagram for a circuit that operates as follows:
A. The main switch (MSW) is the emergency stop switch, which is
normally closed.
B. When the red pushbutton (PBR) is pressed, the red pilot light and
motor one (M1) are energized. They will stay on until MSW is opened.
C. When the green pushbutton (PBG) is closed, both white and green pilot
lights turn on, and motor one (M1) and motor two (M2) will run. They
will stay on until MSW is opened.
6. Draw the relay logic diagram for a circuit that operates as follows:
A. The main switch (MSW) is the emergency stop switch, which is
normally closed.
B. When the red pushbutton (PBR) is pressed, the red pilot light turns on
and stays on until MSW is opened.
C. When the green pushbutton (PBG) is pressed, white and green pilot
lights turn on and stay on until MSW is opened.
7. Draw the relay logic diagram for a circuit that operates as follows:
A. When switch one (SW1) is closed, the green pilot light turns on.
B. When switch two (SW2) is closed, the yellow pilot light turns on.
C. When both SW1 and SW2 are closed, the green and yellow pilot lights
turn off, and the red and white pilot lights turn on.

logic diagram?
5. Draw the relay logic diagram for a circuit that operates as follows:
A. The main switch (MSW) is the emergency stop switch, which is
normally closed.
B. When the red pushbutton (PBR) is pressed, the red pilot light and
motor one (M1) are energized. They will stay on until MSW is opened.
C. When the green pushbutton (PBG) is closed, both white and green pilot
lights turn on, and motor one (M1) and motor two (M2) will run. They
will stay on until MSW is opened.
6. Draw the relay logic diagram for a circuit that operates as follows:
A. The main switch (MSW) is the emergency stop switch, which is
normally closed.
B. When the red pushbutton (PBR) is pressed, the red pilot light turns on
and stays on until MSW is opened.
C. When the green pushbutton (PBG) is pressed, white and green pilot
lights turn on and stay on until MSW is opened.
7. Draw the relay logic diagram for a circuit that operates as follows:
A. When switch one (SW1) is closed, the green pilot light turns on.
B. When switch two (SW2) is closed, the yellow pilot light turns on.
C. When both SW1 and SW2 are closed, the green and yellow pilot lights
turn off, and the red and white pilot lights turn on.
