Electric Circuits Quiz Active Jamal draws the circuit diagram shown. How many of each component are in the diagram? Check all that apply. one battery two switches two batteries two resistors three light bulbs three switches
Added by Heather H.
Close
Step 1
One battery, two switches, two batteries, Show more…
Show all steps
Your feedback will help us improve your experience
Christian Dell and 58 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
5. Draw a parallel circuit diagram that has one battery and four light bulbs. 6. Draw a parallel circuit diagram that has two battery and four resistors and open switch. 7. Draw a parallel circuit diagram that has one battery, and three light bulbs, each having its own resistor and open switch. 8. Draw a parallel circuit diagram that has three batteries four light bulbs three resisters before each light bulbs and a closed switch. 9. Draw a parallel circuit diagram showing a battery with two light bulbs and two resisters in series and a closed switch.
Devya P.
Each of the four circuits in the drawing consists of a single resistor whose resistance is either $R$ or $2 R,$ and a single battery whose voltage is either $V$ or 2$V .$ The unit of voltage in each circuit is $V=12.0 \mathrm{V}$ and the unit of resistance is $R=6.00 \Omega$ . Determine $\quad$ (a) the power supplied to each resistor and $(\text { b) the current delivered to each }$ resistor.

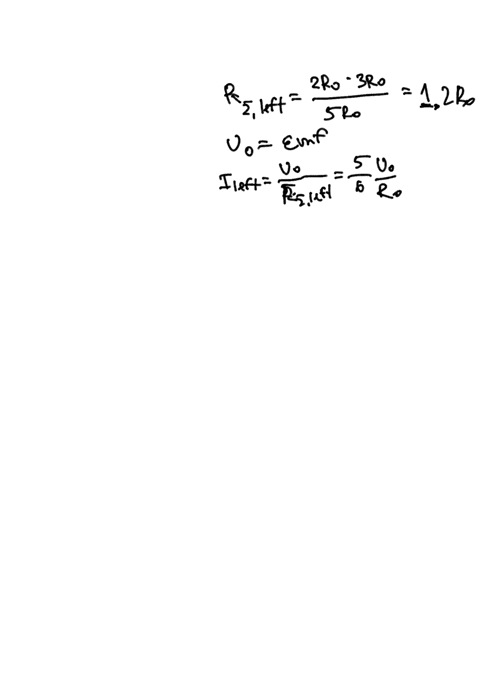

Two circuits are shown in the figure. All circles represent identical bulbs but only four of them are labeled with letters A, B, C and D. Compare the brightness of these labeled bulbs. B>A>D>C A=B=C=D A>B>C>D A=C>B>D B>D>A>C D>B>A=C
