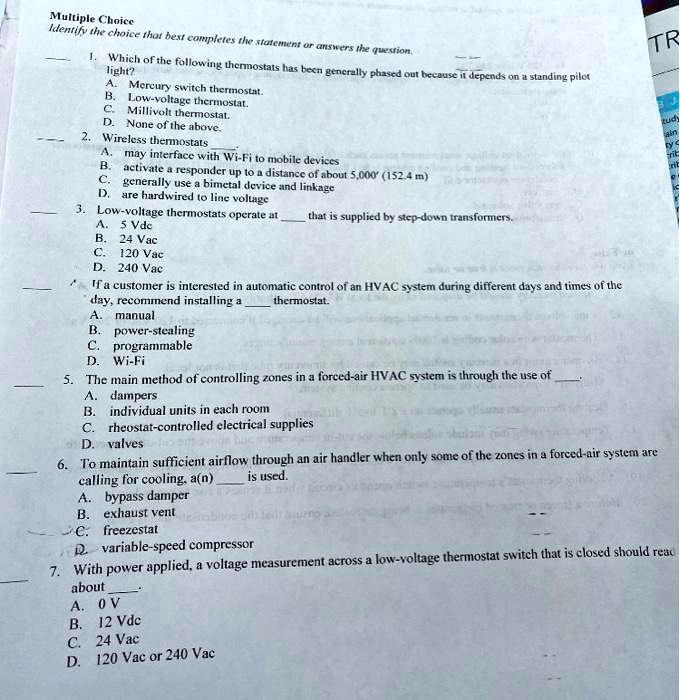

          Multiple Choice
Identify the choice that best completes the statement or answers the question.

1. Which of the following thermostats has been generally phased out because it depends on a standing pilot light?
A. Mercury switch thermostat.
B. Low-voltage thermostat.
C. Millivolt thermostat.
D. None of the above.

2. Wireless thermostats
A. may interface with Wi-Fi to mobile devices
B. activate a responder up to a distance of about 5,000' (152.4 m)
C. generally use a bimetal device and linkage
D. are hardwired to line voltage

3. Low-voltage thermostats operate at ______ that is supplied by step-down transformers.
A. 5 Vdc
B. 24 Vac
C. 120 Vac
D. 240 Vac

4. If a customer is interested in automatic control of an HVAC system during different days and times of the day, recommend installing a ______ thermostat.
A. manual
B. power-stealing
C. programmable
D. Wi-Fi

5. The main method of controlling zones in a forced-air HVAC system is through the use of ______
A. dampers
B. individual units in each room
C. rheostat-controlled electrical supplies
D. valves

6. To maintain sufficient airflow through an air handler when only some of the zones in a forced-air system are calling for cooling, a(n) ______ is used.
A. bypass damper
B. exhaust vent
C. freezestat
D. variable-speed compressor

7. With power applied, a voltage measurement across a low-voltage thermostat switch that is closed should read about ______
A. 0 V
B. 12 Vdc
C. 24 Vac
D. 120 Vac or 240 Vac
