HW Problem 3 Conservation of Power 5 points each part Find Power in each device: P1 ______ P2 ______ P3 ______ P4 ______ Find Current in device 4 using KCL $I_4$ = ______

          HW Problem 3
Conservation of Power
5 points each part
Find Power in each device:
P1 ______
P2 ______
P3 ______
P4 ______
Find Current in device 4 using KCL
$I_4$ = ______
HW Problem 3 Conservation of Power 5 points each part Find Power in each device: P1 P2 P3 P4 Find Current in device 4 using KCL I4 =

Added by Kelly -.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture

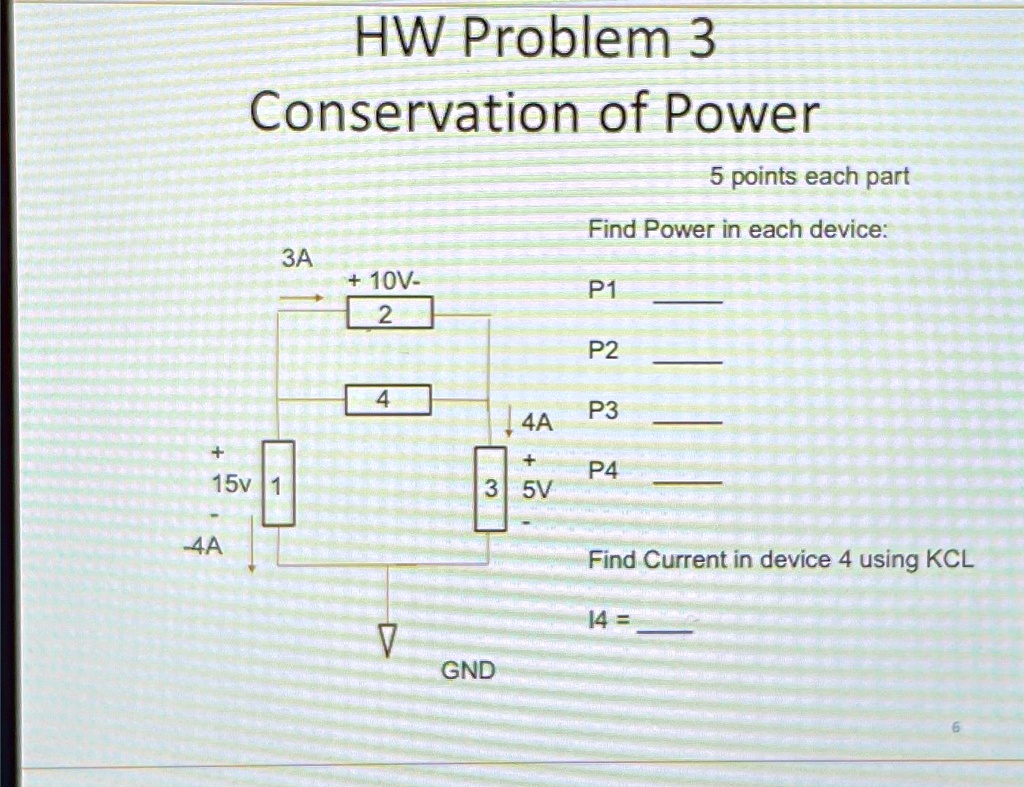

HW Problem 3 Conservation of Power 5 points each part HW Problem 3 Conservation of Power 5points each part Find Power in each device: 3A +10V- 2 P1 P2 4 4A P3 + + 3 5V P4 15v 1 4A Find Current in device 4 using KCL 14= V GND
Close icon
Play audio
Feedback
Powered by NumerAI
Ivan Kochetkov David Collins
Jennifer Stoner verified

Adi S and 86 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
p144use-kvl-and-kcl-to-solve-for-the-labelled-currents-and-voltages-in-figure-p144-compute-the-power-for-each-element-and-show-that-power-is-conserved-ie-the-algebraic-sum-of-the-powers-is-z-07386

Adi S.
1-25ptsfor-the-circuit-shown-in-figure-below-afind-vo-b-compute-the-power-supplied-delivered-or-absorbed-by-each-componen-c-determine-whether-each-component-is-absorbing-or-delivering-power-29239

25 pts. For the circuit shown in Figure below: a. Find Vo. b. Compute the power supplied (delivered or absorbed) by each component. c. Determine whether each component is absorbing or delivering power. d. Is conservation of power satisfied? Explain your answer.

Sri K.
part-2-problem-solving-calculate-the-individual-voltage-current-and-power-dissipation-of-each-loads-on-the-circuit-above-r-load-voltage-current-power-1ko-r1-v-rz-4-ko-r3-8-kn-r2-59-v-r3-rt-p-88668

Part 2: PROBLEM SOLVING: Calculate the individual voltage, current, and power dissipation of each load on the circuit above: Load Voltage Current Power R1 R2 R3 Rt = Load Voltage Current Power R1 R2 R3 Rt = Load Voltage Current Power R1 R2 R3 Rt = Pt =

Suman K.
*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,820 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,191 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,126 solutions
*

Transcript

-
00:01 From this question we can write calculate the power of each element so power p which is equal to v multiplied with i here v is the voltage across the element and i is the current through the element so we have to write first for 10 voltage of source this is power 10 v which is equal to minus 10 v multiple with 1 a here minus 10 v is the voltage drop across the 10 voltage source and 1 a is the current node so the answer is minus 10…
