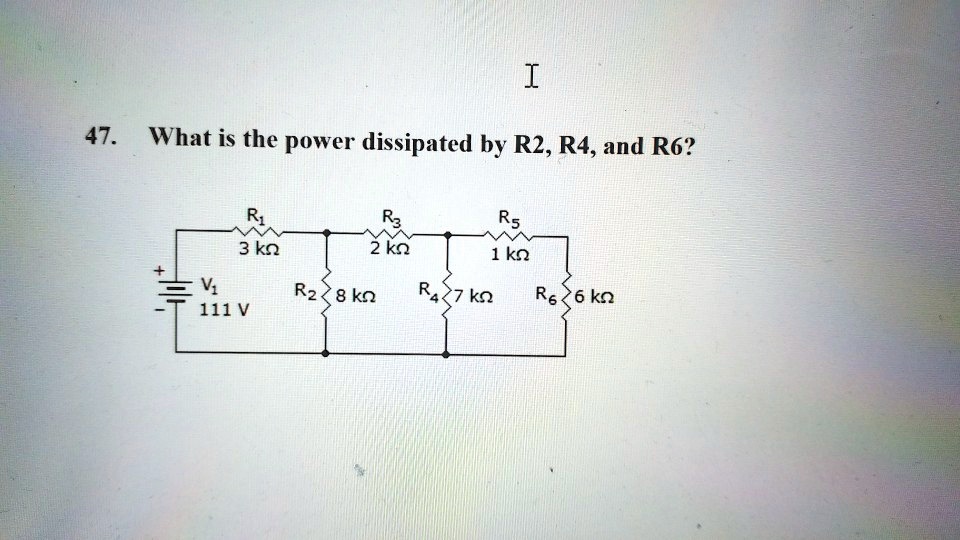

47. What is the power dissipated by R2, R4, and R6? R1 3 k? R3 2 k? R5 1 k? V1 111 V R2 8 k? R4 7 k? R6 6 k?
Added by Clinton B.
Close
Step 1
The question does not specify the circuit configuration (series, parallel, or a combination). For the purpose of this solution, we'll assume a simple series circuit as the most straightforward scenario. This assumption is based on the information given and the Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 99 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

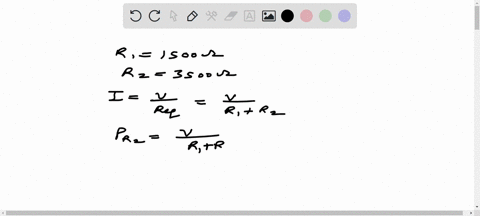

Consider the circuit in Figure $\mathrm{P} 19.29$ with $R_{1}=1500 \Omega$ and $R_{2}=3500$ \Omega. If $\varepsilon=12 \mathrm{V}$, what is the power dissipated in $R_{2} ?$
