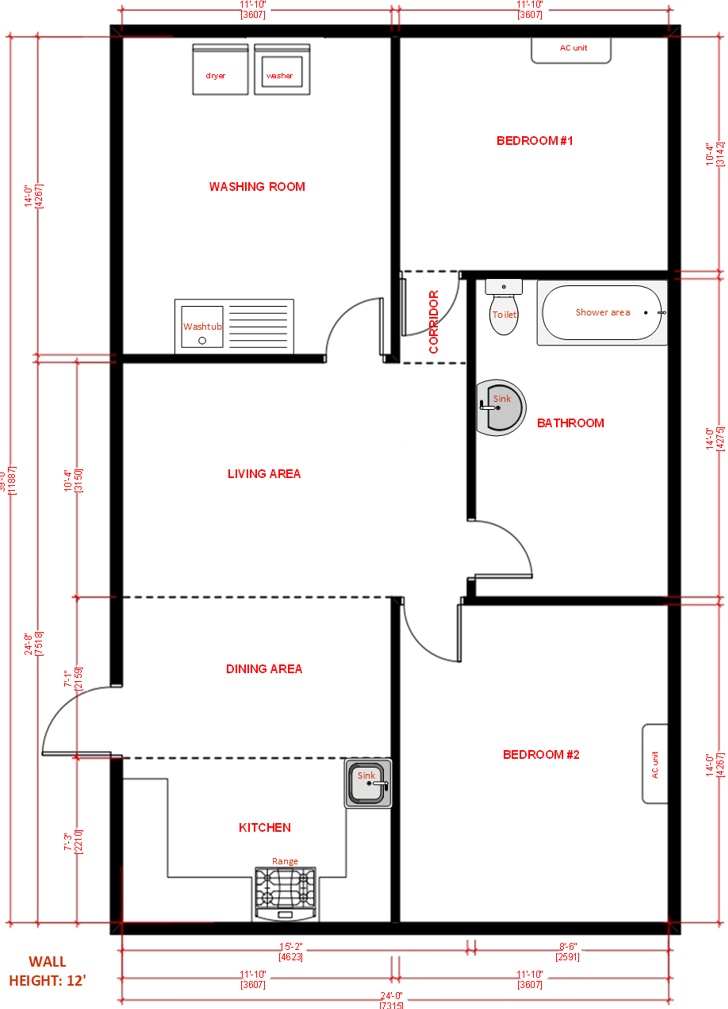

I need to do the full lighting design for one room in the house plan below. The lumen method must be used. Any light bulb from the table provided can be used. It should be the most economical and not too expensive.
Table 1: Light Bulb Specification Summary
Type of Light Bulb Initial (lm) LLMF (%) Calculated (lm) Power (W) p.f. Voltage (V) Current (A) S (VA) Eco Twister 1380 70 966 23 0.5 120 0.38 45.6 DuraMax 235 100 235 25 1.00 120 0.21 25.2 LEDLamps 800 70 560 8.5 0.5 120 0.14 16.8 MASTER 1225 90 1102.5 15.7 0.34 120 0.38 45.6 Bright LED 2175 70 1522.5 20 0.7 120 0.24 28.8
I need to show the full calculation for any room in the house and for the rest of the rooms, I just need to put the calculated results in a table. So a full lighting design needs to be done for the house. If I see how to do one room, I can do the rest.
11-10 [3607]
1110 [3607]
AC unit
dryer
ashe
BEDROOM #1
WASHING ROOM
CORRIDOR
Shower area
Washtub
Sin
BATHROOM
LIVING AREA
8
DINING AREA
R
BEDROOM #2
AC unit
Sink
KITCHEN
Range
1 5'- 2* [4623] 11'-10 [3607]
86 [2591] 11'-10 [3607]
WALL
HEIGHT: 12'
240
