Question

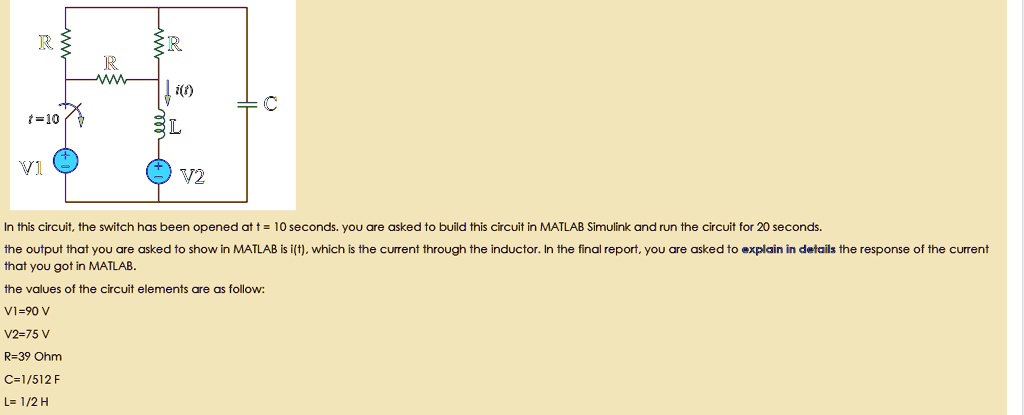

R=39 Ohm C=1/512 F L= 1/2 H In this circuit, the switch has been opened at t = 10 seconds. you are asked to build this circuit in MATLAB Simulink and run the circuit for 20 seconds. the output that you are asked to show in MATLAB is i(t), which is the current through the inductor. In the final report, you are asked to explain in details the response of the current that you got in MATLAB. the values of the circuit elements are as follow: V1=90 V V2=75 V

          R=39 Ohm
C=1/512 F
L= 1/2 H
In this circuit, the switch has been opened at t = 10 seconds. you are asked to build this circuit in MATLAB Simulink and run the circuit for 20 seconds.
the output that you are asked to show in MATLAB is i(t), which is the current through the inductor. In the final report, you are asked to explain in details the response of the current
that you got in MATLAB.
the values of the circuit elements are as follow:
V1=90 V
V2=75 V

R=39 Ohm
C=1/512 F
L= 1/2 H
In this circuit, the switch has been opened at t = 10 seconds. you are asked to build this circuit in MATLAB Simulink and run the circuit for 20 seconds.
the output that you are asked to show in MATLAB is i(t), which is the current through the inductor. In the final report, you are asked to explain in details the response of the current
that you got in MATLAB.
the values of the circuit elements are as follow:
V1=90 V
V2=75 V

Added by Jose Francisco L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Aman Kumar

Step 1

First, we need to build the circuit in MATLAB Simulink. To do this, we can use the Simulink library to find the necessary components. We will need a voltage source, resistors, capacitors, and an inductor. Connect them according to the given circuit diagram. Show more…

Show all steps

Thanks for your feedback!

I need to do this on MATLAB and need a report of details. R R R WWW i(f) C t = 10 T y1 V2 In this circuit, the switch has been opened at t = 10 seconds. You are asked to build this circuit in MATLAB Simulink and run the circuit for 20 seconds. The output that you are asked to show in MATLAB is i(t), which is the current through the inductor. In the final report, you are asked to explain in detail the response of the current that you got in MATLAB. The values of the circuit elements are as follows: V1 = 90V V2 = 75V R = 39 Ohm C = 1/512F L = 1/2H
