Question

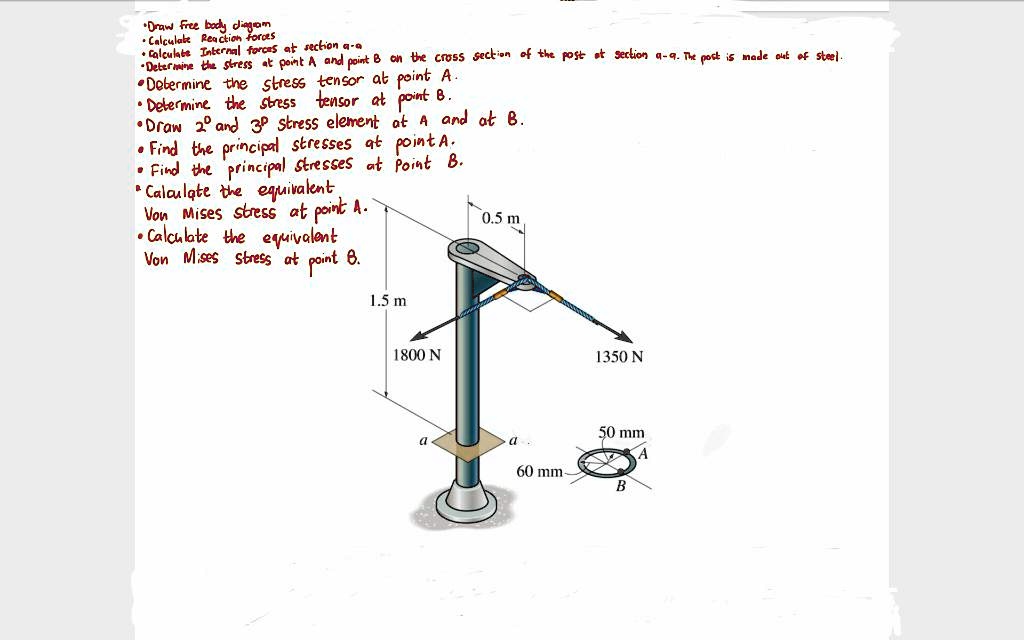

•Draw free body diagram •Calculate Reaction forces •Calculate Internal forces at section a-a •Determine the stress at point A and point B on the cross section of the post at section a-a. The post is made out of steel. •Determine the stress tensor at point A. • Determine the stress tensor at point B. •Draw 2D and 3D stress element at A and at B. • Find the principal stresses at point A. • Find the principal stresses at Point B. •Calculate the equivalent Von Mises stress at point A. • Calculate the equivalent Von Mises stress at point B.

          •Draw free body diagram
•Calculate Reaction forces
•Calculate Internal forces at section a-a
•Determine the stress at point A and point B on the cross section of the post at section a-a. The post is made out of steel.
•Determine the stress tensor at point A.
• Determine the stress tensor at point B.
•Draw 2D and 3D stress element at A and at B.
• Find the principal stresses at point A.
• Find the principal stresses at Point B.
•Calculate the equivalent
Von Mises stress at point A.
• Calculate the equivalent
Von Mises stress at point B.
Show more…
•Draw free body diagram •Calculate Reaction forces •Calculate Internal forces at section a-a •Determine the stress at point A and point B on the cross section of the post at section a-a. The post is made out of steel. •Determine the stress tensor at point A. • Determine the stress tensor at point B. •Draw 2D and 3D stress element at A and at B. • Find the principal stresses at point A. • Find the principal stresses at Point B. •Calculate the equivalent Von Mises stress at point A. • Calculate the equivalent Von Mises stress at point B.

Added by Megan P.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
I posted this question earlier. I did not achieve much understanding of what the person who answered it earlier. Is it possible to answer the following question by hand and drawing the appropriate diagrams for each part/step required please? Draw free body diagram. Calculate reaction forces. Calculate internal forces at section a-a. Determine the stress tensor at point B. Draw 2D and 3D stress elements at A and at B. Find the principal stresses at point A. Find the principal stresses at point B. Calculate the equivalent Von Mises stress at point A. Calculate the equivalent Von Mises stress at point B. 1.5 m 1800 N 1350 N 50 mm 60 mm
