I R θ 1.) Using the Biot-Savart Law find the Magnetic Field B at the center of this 115° arc with current I=20Amps and Radius R=50cm.
Added by Heidi A.
Close
Step 1
5 m) Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 75 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

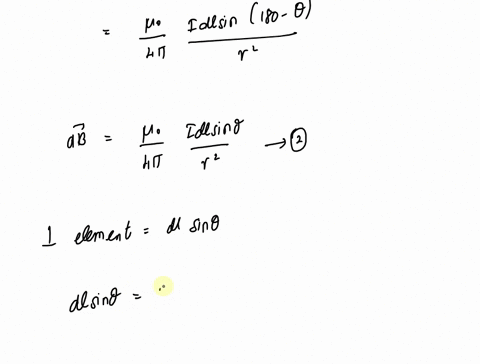

The magnetic field produced by a thin straight conductor (finite length) carrying a current I at perpendicular distance r from the conductor is given by B = (ΐ0/4ΐ̑) * (I * sinΐ) / r. (a) Use the Biot-Savart law to derive the equation. (b) Consider a conducting loop in the shape of a rectangle of length L = 2.00 m and width w = 1.00 m carrying a clockwise (from top view) current I = 10.0 A lies on the horizontal plane. Use the above equation to calculate the net magnetic field at the center of the rectangle in Cartesian vector form. Set the x-axis to the right and the y-axis upward.
Madhur L.
a) Use the Biot-Savart Law to derive an expression for the B-field produced by a half-circle of wire having radius R and carrying current I, as seen by an observer at the center of the half-circle. Start from the law itself, and show every step clearly. c) Use your result to determine the (numerical) magnitude and direction of the B-field at point O produced by the current-carrying wires in the diagram to the right.
Adi S.

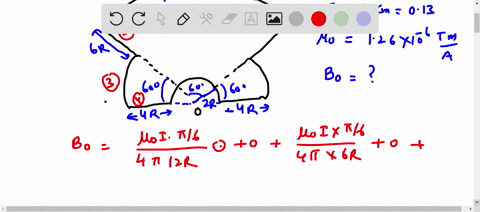

A loop of wire is bent to have straight and circular arc shaped parts as shown in the figure. A constant current I of 36A flows through the wire in the direction depicted in the figure. If the length R equals 13 cm, determine the magnitude and the direction of the magnetic field produced by the loop of wire at point O by using Biot-Savart’s Law (μ₀≈1.26x10⁻⁶ T.m/A)
Khoobchandra A.
