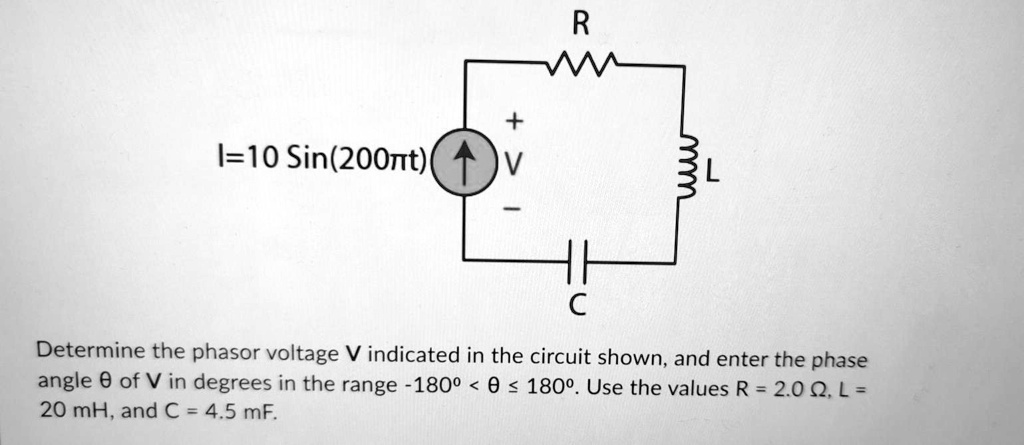

I=10 Sin(200??t) R + V L – C Determine the phasor voltage V indicated in the circuit shown, and enter the phase angle ?? of V in degrees in the range -180º < ?? ? 180º. Use the values R = 2.0 ?, L = 20 mH, and C = 4.5 mF.
Added by Luisa S.
Close
Step 1
The impedance of a resistor (R), an inductor (L), and a capacitor (C) in series is given by: Z = R + j(X_L - X_C) where X_L is the inductive reactance, X_C is the capacitive reactance, and j is the imaginary unit. X_L = ωL and X_C = 1/(ωC) Given the current I Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
For an ac circuit with $R=1.00 \mathrm{k} \Omega, C=1.00 \mu \mathrm{F}, E=10 \overline{0} \mathrm{~V},$ and $f=10 \overline{0} \mathrm{~Hz}$ : (a) find the impedance (in ohms), (b) find the phase angle, and (c) find the current.
Alternating Current Electricity
Capacitance and Resistance in Series
AC circuits: For the circuits indicated. Find the magnitude of $Z$, the phase angle between current and voltage, and write the result in trigonometric form; and (b) find the total voltage across this circuit. Recall $Z=R+\left(X_{L}-X_{C}\right) j$ and (FIGURE CAN NOT COPY) $$R=35 \Omega \text { and } X_{L}=12 \Omega, \text { with } I=4 \mathrm{A}$$
Applications of Trigonometry
Complex Numbers in Trigonometric Form
$\begin{array}{lllll} & \text { An } L-R-C & \text { series } & \text { circuit has source } & \text { voltage } & \text { amplitude }\end{array}$ $V=240 \mathrm{~V},$ and the voltage amplitudes for the inductor and capacitor are $V_{L}=310 \mathrm{~V}$ and $V_{C}=180 \mathrm{~V} .$ What is the phase angle $\phi ?$
