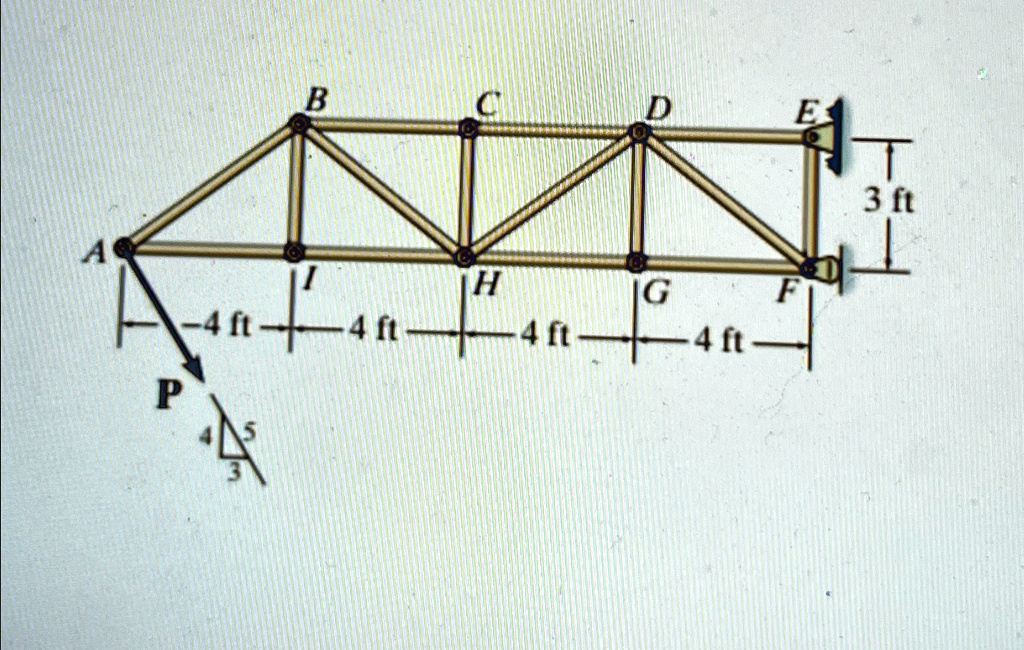

B E A H G F -4 ft 4 ft 4 ft 4 ft P 45 3 3 ft
Added by Erica C.
Close
Step 1
Since the system is in equilibrium, the sum of forces in the x-direction and y-direction must be equal to zero. In the x-direction: - Force at DE = Force at DF + Force at GF - Force at DE = 0 + Force at GF (since there is no horizontal force at DF) In the Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 80 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The force system acting on a structural member consists of the couple C and the forces F, F2, and F3. Determine the equivalent force-couple system with the force acting at point G. Use C = 200 lbft, F = 100 lb, F2 = 90 lb, and F3 = 120 lb. B F F 0 6 ft Fa A 38.78i + 43.18i + 38.41k lb 275i + 153.6j + 70.9k lb.ft
Supreeta N.

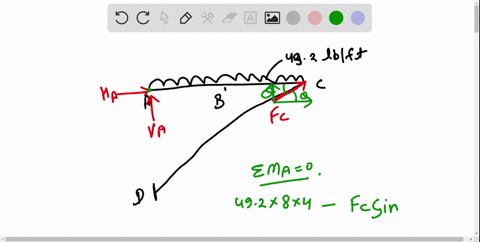

Determine the normal force at point b using the method of section if w = 49.2 lb/ft.
Kritika M.
The force shown in $\mathrm {FIGURE} 7-21$ moves an object from $x=0$ to $x=0.75 \mathrm{m} .$ (a) How much workis doneby the force? (b) How much work is done by the force if the object moves from $x=0.15 \mathrm{m}$ to $x=0.60 \mathrm{m} ?$
