If the impedance Z1 = 10 + j10 and the impedance Z2 = 10 - j0 are connected in series, the equivalent impedance would be: A. 20 + j20 ohms B. 20 + j 10 ohms C. 20 ohms D. None of the other choices are correct E. 20 - j10 ohms
Added by Tina S.
Step 1
We have: - Z1 = 10 + j10 ohms - Z2 = 10 - j0 ohms Show more…
Show all steps
Your feedback will help us improve your experience
Bhushan Arora and 88 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

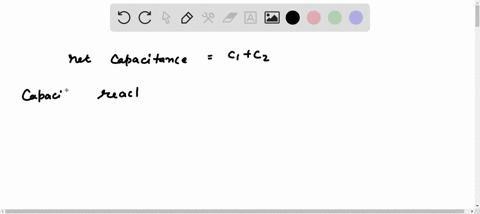

Two parallel capacitors C1 and C2 are in series with two series inductors L1 and L2 and connected to an AC supply of ω rad/s, then the equivalent impedance equals__. a) Infinity b) Zero Ohms c) j(-1/(ωC1+ωC2)+ωL1+ωL2)) d) j(-ωC1C2/(C1+C2)+ωL1-ωL2))
Bhushan A.

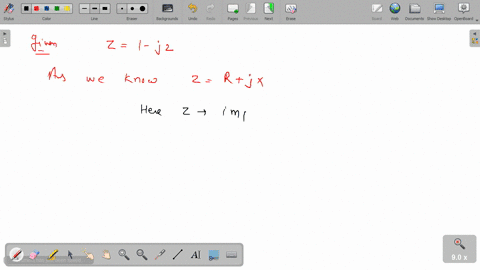

'A circuit has an impedance of (1 - j2)02. The susceptance of the circuit is 0.1 3 b. 0.2 3 c.0.43 d. 0.53'
Mahendra K.
In the adjoining figure the impedance of the circuit will be(a) $120 \Omega$ (b) $50 \Omega$ (c) $60 \Omega$ (d) $90 \Omega$
