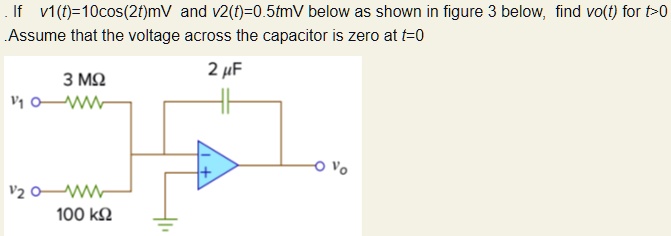

If v1(t)=10cos(2t)mV and v2(t)=0.5tmV below as shown in figure 3 below, find vo(t) for t>0 .Assume that the voltage across the capacitor is zero at t=0
Added by Anthony R.
Close
Step 1
The circuit is an operational amplifier (op-amp) with a capacitor in the feedback loop, which suggests it is an integrator circuit. Show more…
Show all steps
