(II) Calculate the current through each resistor in Fig. 41 if each resistance $R=1.20 \mathrm{k} \Omega$ and $V=12.0 \mathrm{V} .$ What is the potential difference between points $\mathrm{A}$ and $\mathrm{B} ?$
Added by Roberta H.
Step 1
Since the resistors are in parallel, we use the formula for total resistance in a parallel circuit: 1/R_total = 1/R1 + 1/R2 + 1/R3 Substituting the given values: 1/R_total = 1/1.20 + 1/1.20 + 1/1.20 = 2.5 kΩ^-1 Therefore, R_total = 1/2.5 = 0.4 kΩ Show more…
Show all steps
Your feedback will help us improve your experience
Ravindra Yadav and 96 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

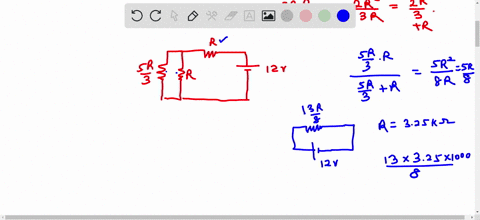

(II) Calculate the current through each resistor in Fig. 19-50 if each resistance $R =$ 3.25 k$\Omega$ and $V =$ 12.0 V. What is the potential difference between points A and B?
Pritesh R.
Each In Fig. $27-27$ find the current in each resistor and the potential difference between points $a$ and $b$. Put $\Delta V_{\mathrm{B} 1}=6.0 \mathrm{~V}$, $\Delta V_{\mathrm{B} 2}=5.0 \mathrm{~V}, \Delta V_{\mathrm{B} 3}=4.0 \mathrm{~V}, R_{1}=$ $100 \Omega$, and $R_{2}=50 \Omega$.
(II) For the circuit shown in Fig. $47,$ find the potential difference between points a and b. Each resistor has $R=130 \Omega$ and each battery is 1.5 $\mathrm{V}$.
