Question

Surface charge density data, $\rho_s(r)$, in $[C/m^2]$, versus radius, $r$ in $[m]$, on the upper patch: $\begin{array}{|c|c|} \hline r (m) & \rho_s(r), [C/m^2], upper \\ \hline 0.00E+00 & 1.075E-07 \\ 1.00E-05 & 1.085E-07 \\ 2.00E-05 & 1.105E-07 \\ 3.00E-05 & 1.135E-07 \\ 4.00E-05 & 1.175E-07 \\ 5.00E-05 & 1.235E-07 \\ 6.00E-05 & 1.336E-07 \\ 7.00E-05 & 1.486E-07 \\ 8.00E-05 & 1.767E-07 \\ 9.00E-05 & 2.420E-07 \\ 1.00E-04 & 1.085E-06 \\ \hline \end{array}$

          Surface charge density data, $\rho_s(r)$, in
$[C/m^2]$, versus radius, $r$ in $[m]$, on the
upper patch:

$\begin{array}{|c|c|}
\hline
r (m) & \rho_s(r), [C/m^2], upper \\
\hline
0.00E+00 & 1.075E-07 \\
1.00E-05 & 1.085E-07 \\
2.00E-05 & 1.105E-07 \\
3.00E-05 & 1.135E-07 \\
4.00E-05 & 1.175E-07 \\
5.00E-05 & 1.235E-07 \\
6.00E-05 & 1.336E-07 \\
7.00E-05 & 1.486E-07 \\
8.00E-05 & 1.767E-07 \\
9.00E-05 & 2.420E-07 \\
1.00E-04 & 1.085E-06 \\
\hline
\end{array}$
Show more…
Surface charge density data, (r), in [C/m^2], versus radius, r in [m], on the upper patch: r (m) (r), [C/m^2], upper 0.00E+00 1.075E-07 1.00E-05 1.085E-07 2.00E-05 1.105E-07 3.00E-05 1.135E-07 4.00E-05 1.175E-07 5.00E-05 1.235E-07 6.00E-05 1.336E-07 7.00E-05 1.486E-07 8.00E-05 1.767E-07 9.00E-05 2.420E-07 1.00E-04 1.085E-06

Added by Nicole J.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
I'm supposed to calculate the total charge of the disc using the Trapezoidal Rule modified for use with Cartesian coordinates. The equation I'm using for each ring is π(change in R)(charge of inner radius + charge of outer radius). The total charge is supposed to be 7.739 x 10^-15, but I am getting 7.19 x 10^-15. What is wrong with my equation? Surface charge density data, Os(r), in [C/m], versus radius, r in [m], on the upper patch: r (m) pr) [C/m], upper 1.075E-07 1.085E-07 0.00E+00 1.00E-05 2.00E-05 1.105E-07 3.00E-05 1.135E-07 4.00E-05 1.175E-07 5.00E-05 1.235E-07 6.00E-05 1.336E-07 7.00E-05 1.486E-07 8.00E-05 1.767E-07 9.00E-05 2.420E-07 1.00E-04 1.085E-06
Close icon
Play audio
Feedback
Powered by NumerAI
Danielle Fairburn David Collins
Kathleen Carty verified

Umar Sohail Qureshi and 96 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
disk-radius-r-has-positive-charge-uniformly-distributed-over-inner-circular-region-of-radius-and-negauve-charge-uniformly-distributed-over-the-outer-annui-ring-shaped-region-figure-1-the-sur-09589

A disk of radius R has positive charge uniformly distributed over an inner circular region of radius a and negative charge uniformly distributed over the outer annular (ring-shaped) region (Figure 1). The surface charge density on the inner region is +σ, and that on the annular region is -σ. The electrostatic potential at P, located on the central perpendicular axis a distance z = R from the disk center, is zero.

Umar Sohail Q.
section1-9-1-21using-standard-scalar-volume-integration-methodsmake-use-of-the-triple-integral-of-odv-given-byl-47-to-find-the-charge-q-inside-the-following-volume-regionssketch-each-con-fig-49467

Adi S.
charge-is-distributed-throughout-spherical-shell-of-inner-radius-t1-and-outer-radius-r2-with-volume-density-given-by-pori-where-po-is-constant-following-the-next-few-steps-outlined-determine-73127

Charge is distributed throughout a spherical shell of inner radius r1 and outer radius r2 with a volume density given by ̑ = ̑0r1/r, where ̑0 is a constant. Following the next few steps outlined, determine the electric field due to this charge as a function of r, the distance from the center of the shell. Hint a. Let's start from outside-in. For a spherical Gaussian surface of radius r > r2, how much charge is enclosed inside this Gaussian surface? Hint for finding total charge Qencl = (Answer in terms of given quantities, ̑0, r1, r2, and physical constants ke and/or ̕0. Use underscore ("_") for subscripts, and spell out Greek letters.) b. What is the electric field as a function of r for distances greater than r2? Finish the application of Gauss's Law to find the electric field as a function of distance. E(r > r2) = c. Now let's work on the "mantle" layer, r1 < r < r2. For a spherical surface of radius r between r1 and r2, how much charge is enclosed inside this Gaussian surface? Hint for finding charge within r Qencl(r) =

Emily A.
*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,692 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,221 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,555 solutions
*

Transcript

-

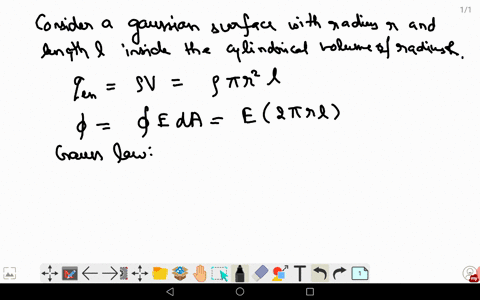

00:01 So now consider a gaussian surface with radius small r and length small l inside this inside the cylindrical volume of radius capital r.
