In a parallel circuit, if there's a power source of 120V and R1= 24ohms R2= 6ohms, the current flow through R2 is: A) 10A B) 5A C) 20A D) 25A
Added by Robert M.
Step 1
So, the voltage across R2 is also 120V. The formula to calculate the current (I) is I = V/R. So, the current through R2 is I = 120V / 6ohms = 20A. Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 99 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

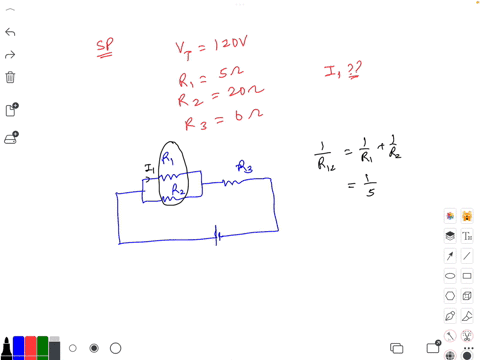

If a series-parallel circuit has VT= 120V, R1= 5ohms (parallel), R2= 20ohms (parallel) and R3= 6ohms (series), the current flow through R1 would be: A) 12A B) 9.6A C) 16.2A D) 6A
Ankur S.
In a series-parallel circuit, if the power source is 120V, IT= 24A I2= 6A V3= 40V, R1= ? (series), R2= ? (parallel), R3= ? (parallel), the value of the applied voltage source would be: A) 40V B) 28V C) 36V D) 120V
