In a properly biased NPN transistor, most of the electrons from the emitter recombine with holes in the base. They recombine in the emitter itself and pass through the base to the collector. They are stopped by the junction barrier. In a transistor, the relation among emitter current, base current, and collector current is: A. Ic - Ie + Ib; B. Ie - Ib + Ic; C. Ie - Ic - Ib; D. Ie + Ib - Ic. A transistor is known as a bipolar transistor because it has: A. Electrons; B. Holes; C. Electrons and holes; D. None of the above. In an NPN or PNP transistor: A. Ic > Ie; B. Ie > Ic; C. Ie = Ic; D. None of the above. The base of an NPN transistor is: A. Heavily doped; B. Lightly doped; C. Medium doped; D. Doped by pentavalent material. In a transistor, the value of a (β) is 100. The value of β is: A. 0.01; B. 0.1; C. 0.99; D. 1. The figure represents a: A. PNP transistor; B. NPN transistor; C. Unipolar transistor; D. None of the above.

          In a properly biased NPN transistor, most of the electrons from the emitter recombine with holes in the base. They recombine in the emitter itself and pass through the base to the collector. They are stopped by the junction barrier.

In a transistor, the relation among emitter current, base current, and collector current is: A. Ic - Ie + Ib; B. Ie - Ib + Ic; C. Ie - Ic - Ib; D. Ie + Ib - Ic.

A transistor is known as a bipolar transistor because it has: A. Electrons; B. Holes; C. Electrons and holes; D. None of the above.

In an NPN or PNP transistor:
A. Ic > Ie; B. Ie > Ic; C. Ie = Ic; D. None of the above.

The base of an NPN transistor is: A. Heavily doped; B. Lightly doped; C. Medium doped; D. Doped by pentavalent material.

In a transistor, the value of a (β) is 100. The value of β is: A. 0.01; B. 0.1; C. 0.99; D. 1.

The figure represents a: A. PNP transistor; B. NPN transistor; C. Unipolar transistor; D. None of the above.

Show more…

Added by Brandon V.

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
In a properly biased NPN transistor, most of the electrons from the emitter recombine with holes in the base. They recombine in the emitter itself and pass through the base to the collector. They are stopped by the junction barrier. In a transistor, the relation among emitter current, base current, and collector current is: A. Ic - Ie + Ib; B. Ie - Ib + Ic; C. Ie - Ic - Ib; D. Ie + Ib - Ic. A transistor is known as a bipolar transistor because it has: A. Electrons; B. Holes; C. Electrons and holes; D. None of the above. In an NPN or PNP transistor: A. Ic > Ie; B. Ie > Ic; C. Ie = Ic; D. None of the above. The base of an NPN transistor is: A. Heavily doped; B. Lightly doped; C. Medium doped; D. Doped by pentavalent material. In a transistor, the value of a (β) is 100. The value of β is: A. 0.01; B. 0.1; C. 0.99; D. 1. The figure represents a: A. PNP transistor; B. NPN transistor; C. Unipolar transistor; D. None of the above.
Close icon
Play audio
Feedback
Powered by NumerAI
Ivan Kochetkov Kathleen Carty
Jennifer Stoner verified

Manish Jain and 69 other subject Physics 102 Electricity and Magnetism educators are ready to help you.

Ask a new question

*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.

*

Recommended Videos

-
just-choose-the-answer-in-bipolar-junction-transistorwhich-of-the-following-is-valid-for-both-npn-and-pnp-configurations-athe-emitter-base-junction-is-forward-biased-for-active-operation-bwh-65314

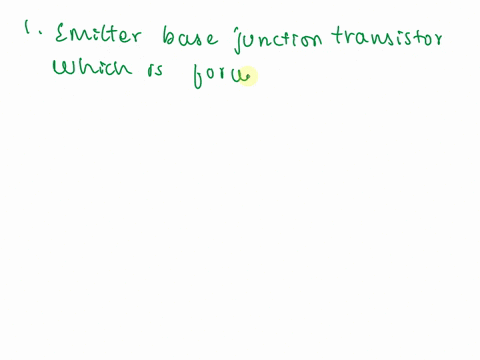

In a bipolar junction transistor, which of the following is valid for both NPN and PNP configurations? A. The emitter-base junction is forward biased for active operation. B. When biased in the active region, current flows into their emitter terminal. C. The emitter injects holes into the base region. D. The electrons are the minority carriers in the base region. In the PNP configuration of a bipolar junction transistor, the base will be: A. P material. B. N material. C. Either P or N material. D. None of the above. A certain regulator has a no-load voltage of 6V and a full-load output of 5.82V. What is the load regulation? A. 3.09% B. 30.15V C. 29.85V D. 28.57V In a bipolar junction transistor, the current ratio IC/IE is called: A. Theta B. Beta C. Omega D. Alpha

Madhur L.

with-the-positive-probe-on-an-npn-basean-ohmmeter-reading-between-the-other-transistor-terminals-should-be-aopen-infinite-clow-resistance-dhigh-resistance-a-decrease-in-base-current-of-a-c-e-75873

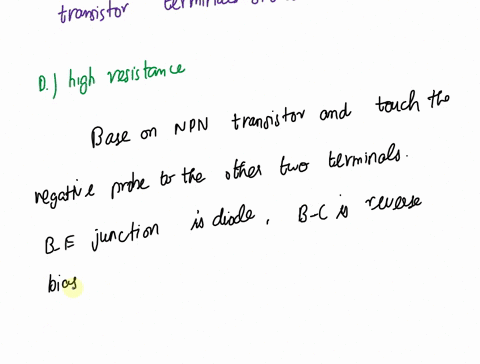

With the positive probe on an NPN base, an ohmmeter reading between the other transistor terminals should be: A. open B. infinite C. low resistance D. high resistance A decrease in base current of a C-E amplifier causes the voltage measured between the emitter and the collector to increase. A. True B. False A transistor may be used as a switching device or as a: A. fixed resistor B. tuning device C. rectifier D. variable resistor Voltage-divider bias provides: A. an unstable Q point B. a stable Q point C. a Q point that easily varies with changes in the transistor's current gain D. a Q point that is stable and easily varies with changes in the transistor's current gain

Madhur L.

an-npn-bipolar-transistor-is-biased-in-the-forward-active-mode-a-the-collector-current-is-i_c12-math

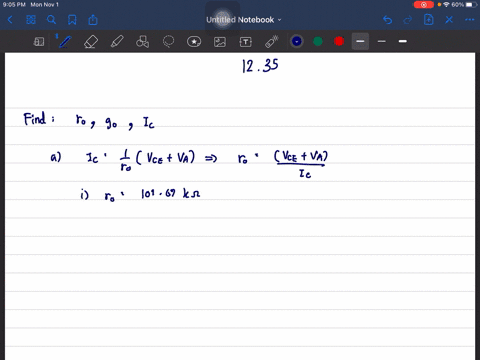

An npn bipolar transistor is biased in the forward-active mode. $(a)$ The collector current is $I_{C}=1.2 \mathrm{~mA}$ when biased at $V_{C E}=2 \mathrm{~V}$. The Early voltage is $V_{A}=120 \mathrm{~V}$. Determine $(i)$ the output resistance $\mathrm{r}_{w},(i i)$ the output conductance $g_{e}$, and $(\mathrm{iii})$ the collector current when biased at $V_{C E}=4 \mathrm{~V} .(b)$ Repeat part $(a)$ if the collector current is $I_{C}=0.25 \mathrm{~mA}$ when biased at $V_{C E}=2 \mathrm{~V}$ and the Early voltage is $V_{A}=160 \mathrm{~V}$.
