Question

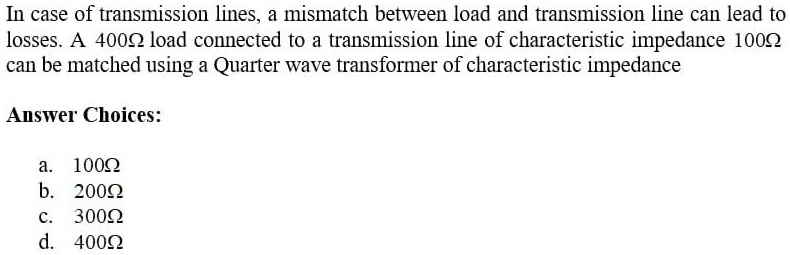

In case of transmission lines, a mismatch between load and transmission line can lead to losses. A 400\Omega load connected to a transmission line of characteristic impedance 100\Omega can be matched using a Quarter wave transformer of characteristic impedance Answer Choices: a. 100\Omega b. 200\Omega c. 300\Omega d. 400\Omega

          In case of transmission lines, a mismatch between load and transmission line can lead to losses. A 400\Omega load connected to a transmission line of characteristic impedance 100\Omega can be matched using a Quarter wave transformer of characteristic impedance
Answer Choices:
a. 100\Omega
b. 200\Omega
c. 300\Omega
d. 400\Omega

In case of transmission lines, a mismatch between load and transmission line can lead to losses. A 400Ωload connected to a transmission line of characteristic impedance 100Ωcan be matched using a Quarter wave transformer of characteristic impedance
Answer Choices:
a. 100Ωb. 200Ωc. 300Ωd. 400Ω

Added by Michael S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Ameer Said

01/03/2022

Step 1

Zt = sqrt(400Ω * 100Ω) = sqrt(40000Ω) = 200Ω Show more…

Show all steps

Thanks for your feedback!

In case of transmission lines, a mismatch between load and transmission line can lead to losses. A 400Ω load connected to a transmission line of characteristic impedance 100Ω can be matched using a Quarter wave transformer of characteristic impedance Answer Choices: a. 100Ω b. 200Ω c. 300Ω d. 400Ω
