5. In each of the two separate situations (a) and (b) below there is bar magnet in the vicinity of a solenoid which is attached to a galvanometer G. Indicate the direction of the deflection of the galvanometer's needle (left or right) while the magnet is moving in the direction shown. (Use Lenz's law to explain!)
Added by Eva M.
Close
Step 1
This means that the solenoid will try to create a north pole at its end closest to the magnet. ** Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 93 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

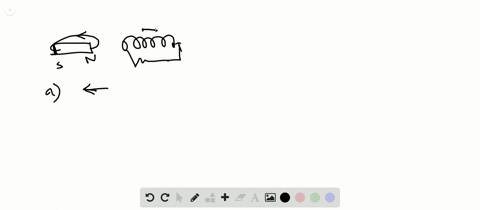

A bar magnet is positioned near a coil of wire, as shown in Figure P20.15. What is the direction of the current in the resistor when the magnet is moved (a) to the left and (b) to the right?
