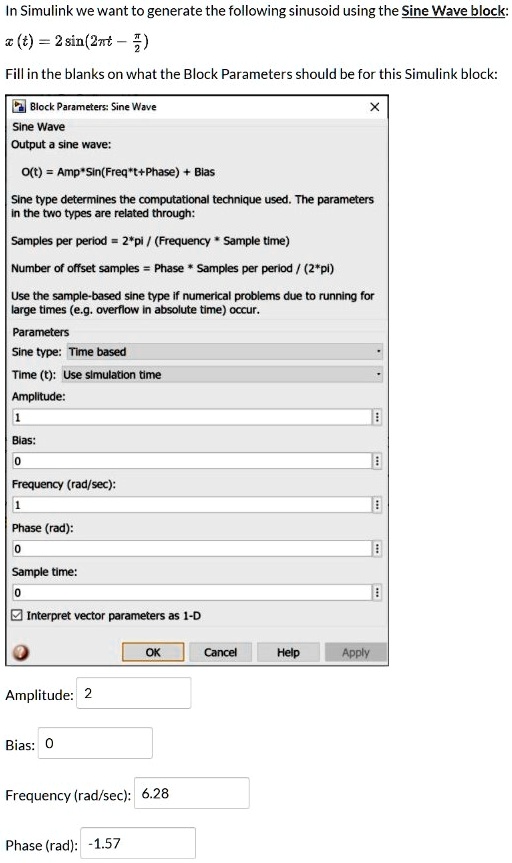

In Simulink we want to generate the following sinusoid using the Sine Wave block: x (t) = 2 sin(2?t - ?/2) Fill in the blanks on what the Block Parameters should be for this Simulink block: Block Parameters: Sine Wave Sine Wave Output a sine wave: O(t) = Amp*Sin(Freq*t+Phase) + Bias Sine type determines the computational technique used. The parameters in the two types are related through: Samples per period = 2*pi / (Frequency * Sample time) Number of offset samples = Phase * Samples per period / (2*pi) Use the sample-based sine type if numerical problems due to running for large times (e.g. overflow in absolute time) occur. Parameters Sine type: Time based Time (t): Use simulation time Amplitude: 1 Bias: 0 Frequency (rad/sec): 1 Phase (rad): 0 Sample time: 0 Interpret vector parameters as 1-D OK Cancel Help Apply Amplitude: 2 Bias: 0 Frequency (rad/sec): 6.28 Phase (rad): -1.57
Added by Kevin M.
Close
Step 1
The amplitude is the coefficient in front of the sine function, which is 2. Show more…
Show all steps
