In the circuit below $C_1 = C_3 = 3 \mu F$, and $C_2 = 6 \mu F$, the battery supplies 9 V. (d) What is the potential energy stored by capacitor 3?
Added by Julie M.
Close
Step 1
Capacitors $C_1$ and $C_2$ are in series, so their equivalent capacitance $C_{12}$ is given by: $\frac{1}{C_{12}} = \frac{1}{C_1} + \frac{1}{C_2} = \frac{1}{3} + \frac{1}{6} = \frac{3}{6} = \frac{1}{2}$ $C_{12} = 2 \, \mu F$ Show more…
Show all steps
Your feedback will help us improve your experience
Prem Bijarniya and 82 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

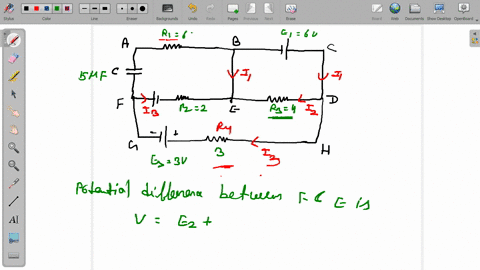

The circuit shown in fig consists of the following $E_{1}=6, E_{2}=2, E_{3}=3$ Volt $\mathrm{R}_{1}=6, \mathrm{R}_{4}=3 \mathrm{Ohm}$ $\mathrm{R}_{3}=4, \mathrm{R}_{2}=2 \mathrm{Ohm}$ $\mathrm{C}=5 \mu \mathrm{F}$$E_{1}=6 \mathrm{~V} \quad E_{2}=2 \mathrm{~V} \quad E_{3}=3 \mathrm{~V} \quad \mathrm{R}_{1}=6 \Omega$ $R_{2}=2 \Omega \quad R_{3}=4 \Omega \quad R_{4}=3 \Omega$ The energy stored in the capacitor is. (A) $4.8 \times 10^{-6} \mathrm{~J}$ (B) $9.6 \times 10^{-6} \mathrm{~J}$ (C) $1.44 \times 10^{-5} \mathrm{~J}$ (D) $1.92 \times 10^{-5} \mathrm{~J}$

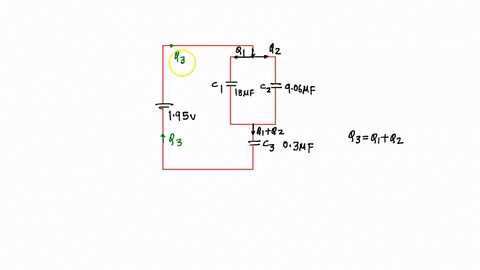

Consider the figure below. (a) Find the charge stored on each capacitor in the figure shown above (C1 = 18.0 µF, C2 = 9.06 µF, and C3 = 0.300 µF) when a 1.95 V battery is connected to the combination. (b) What energy is stored in each capacitor?
Sahil K.
Given C1=3μF and C2=6μF are capacitances of two capacitor arranged in series are connected in parallel with a third capacitor C3= 4μF. The arrangement is connected to a 6.0 V battery. Calculate the total energy stored in the capacitor?
Jaya M.
