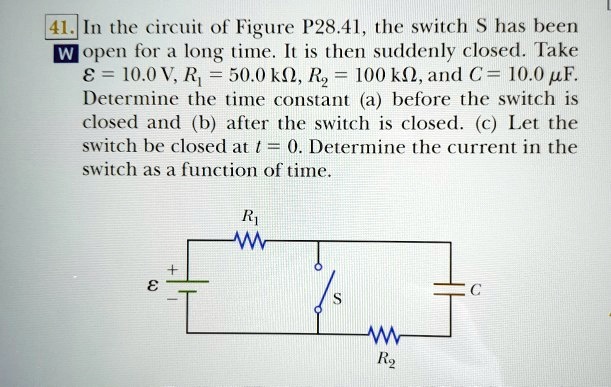

In the circuit of Figure P28.41, the switch S has been open for a long time. It is then suddenly closed. Take ? = 10.0 V, R1 = 50.0 k?, R2 = 100 k?, and C = 10.0 ?F. Determine the time constant (a) before the switch is closed and (b) after the switch is closed. (c) Let the switch be closed at t = 0. Determine the current in the switch as a function of time.
Added by Jerry W.
Close
Step 1
The time constant for an RC circuit is given by τ = RC. In this case, R = R1 = 50.0 kΩ and C = 10.0 pF. So, the time constant before the switch is closed is: τ_before = R1 * C = (50.0 * 10^3 Ω) * (10.0 * 10^-12 F) = 5.0 * 10^-7 s (b) After the switch is closed, Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 85 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In the circuit of Figure $P 28.39$ , the switch $S$ has been open for a long time. It is then suddenly closed. Take $\varepsilon=10.0 \mathrm{V}$ , $R_{1}=50.0 \mathrm{k} \Omega, R_{2}=100 \mathrm{k} \Omega,$ and $C=10.0 \mu \mathrm{F}$ . Determine the time constant (a) before the switch is closed and (b) after the switch is closed. (c) Let the switch be closed at $t=0$ . Determine the current in the switch as a function of time.

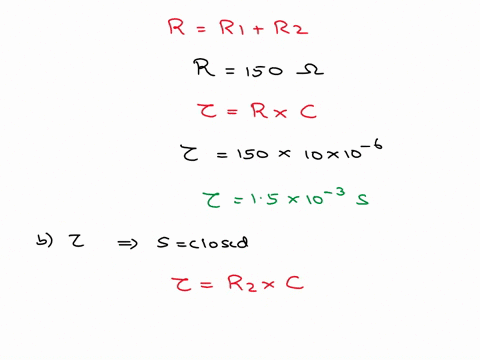

In the circuit of Figure below, the switch S has been open for a long time. It is then suddenly closed. Determine the time constant (a) before the switch is closed and (b) after the switch is closed. (c) Let the switch be closed at t = 0. Determine the current in the switch as a function of time: R1 = 50.0̦ V = 10.0 V C = 10.0 μF R2 = 100 ̦
Madhur L.
In the circuit of the figure below, the switch S has been open for a long time. It is then suddenly closed. Take ε = 10.0 V, R1 = 58.0 kΩ, R2 = 150 kΩ, and C = 12.0 μF. (a) Determine the time constant before the switch is closed. (b) Determine the time constant after the switch is closed. (c) Let the switch be closed at t = 0. Determine the current in the switch as a function of time. (Assume I is in A and t is in s. Do not enter units in your expression. Use the following as necessary: t.)
Lavanya V.
