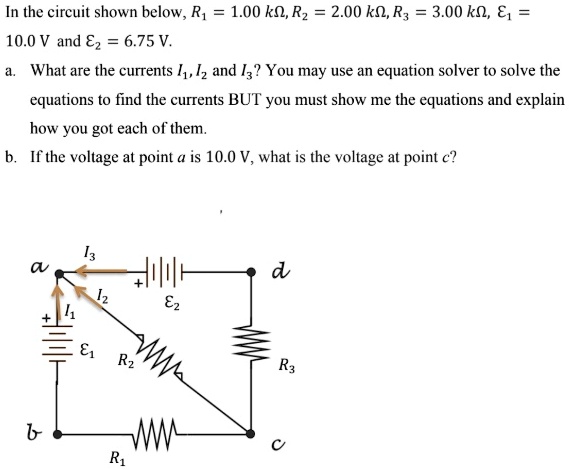

In the circuit shown below, R1 = 1.00 k?, R2 = 2.00 k?, R3 = 3.00 k?, ?1 = 10.0 V and ?2 = 6.75

Name: In the circuit shown below, R1 = 1.00 k?, R2 = 2.00 k?, R3 = 3.00 k?, ?1 = 10.0 V and ?2 = 6.75 V. a. What are the currents I1, I2 and I3? You may use an equation solver to solve the equations to find the currents BUT you must show me the equations and explain how you got each of them. b. If the voltage at point a is 10.0 V, what is the voltage at point c?
Uploaded: 2023-09-15T02:18:57-08:00
Duration: 5 min 17 s
Channel: Adi S
Description: In the circuit shown below, R1 = 1.00 k?, R2 = 2.00 k?, R3 = 3.00 k?, ?1 = 10.0 V and ?2 = 6.75 V. a. What are the currents I1, I2 and I3? You may use an equation solver to solve the equations to find the currents BUT you must show me the equations and explain how you got each of them. b. If the voltage at point a is 10.0 V, what is the voltage at point c?

Question

Vivek K · Accepted Answer

First, we need to find the currents I1, I2, and I3 in the circuit. To do this, we can use Kirchh
